Aluminium Height Bars - Suspended Vehicle Height Bar 9-11m

Aluminium Height Bars - Suspended Vehicle Height Bar 9-11m
Aluminium Height Bars - Suspended Vehicle Height Bar 9-11m
Price: AUD $1,104.40 (Ex GST AUD $1,004.00)
Enter your delivery location for a shipping quote...

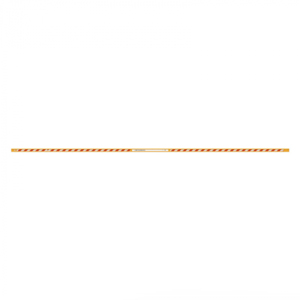

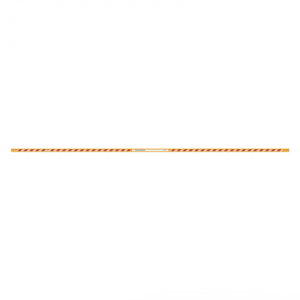

Aluminium Height Bar Suspended Vehicle Height Restriction Bar with Hanger Assemblies and Chains used where vehicles first enter areas of restricted height—undercover areas or areas with overhead obstructions.

Height restriction bars prevent damage to oversize vehicles and to property.

Features of Group 2: Hanger Beam Aluminium Height Restriction Bars:

  • Eliminate danger to vehicles or property caused by over-height vehicles
  • Bar lengths from 9m to 11.5m - Custom lengths made to order
  • Install where clearance is 8 metres or less, and width up to 12 metres
  • Adjustable Hanger Kit (chain and clips)
  • Height Bar post 150 x 6mm SHS - max. 8m high (if there is no existing support structure)
  • Hanger Beam - 12m max.
  • Simplified installation with fully adjustable chain and clips that can be used with stand-off brackets and height bar
  • Custom lengths made to order NB: When using
  • Hanger Beam - two-piece:
      Maximum Height Clearance 7.2 metres - Max. post height 8 metres
           Maximum Height Bar Length 11.5 metres - Max. Post span 12 metres
  • Engineered to wind Region A, Terrain Category 2
  • Powdercoated yellow with reflective face
  • "LOW CLEARANCE" text and required clearance
       Upon receipt of Emailed Order Confirmation, please specify the following by return email, e.g., "LOW CLEARANCE -.- __ m")
  • Bottom of the Height Clearance Bar to the surface of the road
  • Complies to AS2890.1

*Post and Reo cage pricing is for 1 unit each*

NB: Group 2 height bars and components are site-specific and made to order from stock components.

Order Codes

9 metre bar with text and 2 x hanger kits
 10 metre bar with text and 2 x hanger kits

11.5 metre bar with text and 2 x hanger kits

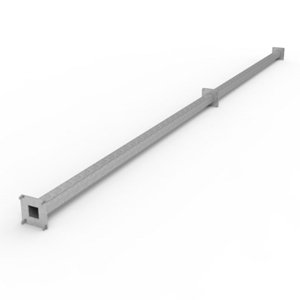

 Group 2 Hanger beam (Each) 12 metres max. (sold separately)

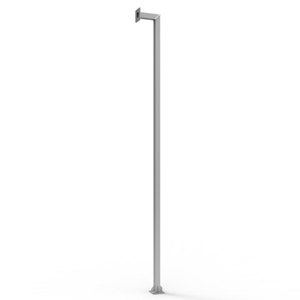

Group 2 post 150mm x 6mm SHS - 8 metres high max. (sold separately)

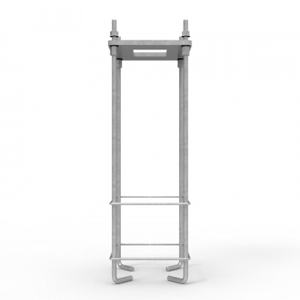

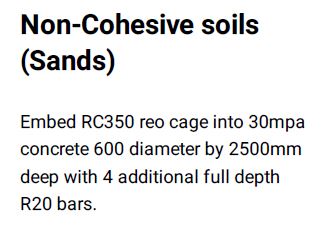

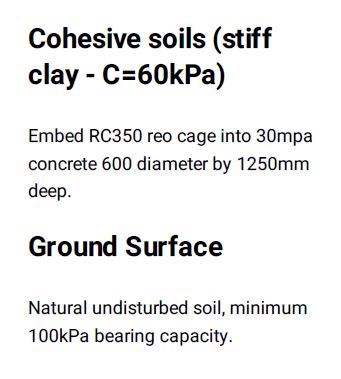

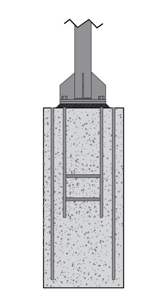

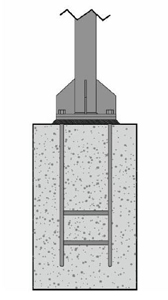

In-ground Reo Cage M20 x 350 x 1000mm (sold separately)
Additional Hanger Kits (Chain and Clips)

Specifications of Aluminium Height Restriction Bar Rail
Two-Piece Extruded Aluminium
Yellow powdercoated Bar
Galvanised steel chain
9, 10, 11.5 metres
9 metres with hangers - 7.7kg
10 metres with hangers - 9kg
11.5 metres with hangers - 11.5kg

Specifications of Hanger Beam & Post
150 x 6mm SHS Mild Steel
Hot dip galvanised
12 metres max.
 8 metres max.


NOTE: Please specify the required clearance when ordering the height bar.
This will be the distance from the bottom of the height bar to the road surface.
