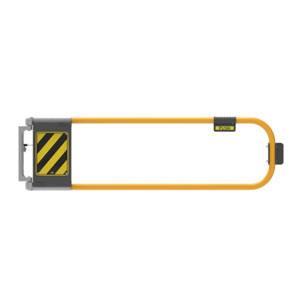

Ball Fence Swing Gates
Ball Fence Swing Gates
Price: AUD $671.00 (Ex GST AUD $610.00)
Enter your delivery location for a shipping quote...

Ball Fence Swing Gates are specifically designed to be used with Ball Fences. They are self-closing and can be installed for either left- or right-hand use, opening inward or outward, ensuring maximum convenience.

Additionally, they are highly flexible, with adjustable hoop length and return spring pressure, making them adaptable to any situation.

Features of Ball Fence Swing Gates:

  • Powdercoated precision cast aluminium hoop is adjustable for gate width opening
  • Can be installed with New Ball Fences or retrofitted
  • All Aluminium Construction - reduces weight and increases the working life
  • Cut the hoop to required length and fit it into the receiver tubes on the gate assembly
  • Designed for mounting to any round, flat or square surface

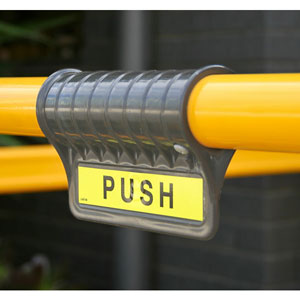

  • Push/pull handle with adhesive stickers indicate the direction of the swing
  • Stricker plate provides positive close and eliminates wrong-way push
  • Moulded plastic housing cover - built-in hazard panel for Enhanced visibility

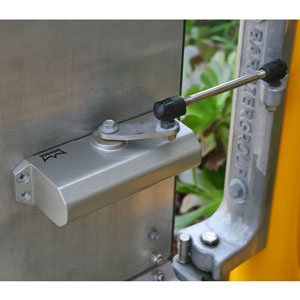

  • Smooth/speed-controlled closure with fully adjustable hydraulic closer
  • Built-in stainless steel stop pins and hold-open feature
  • Axles run on four Stainless Steel Sealed Bearings, top & bottom
  • Stainless Steel Bearing HInges Top & Bottom

Specifications of Ball Fence Swing Gate:

Description: Self-closing safety gate
Operation: Hydraulic spring assistance
Construction: Cast aluminium chassis and hoop
Gate Swing:  90 degrees
Gate Stop: Built-in
Hold Open: Built-in
Receiver Post: Optional
Span Width:  Max 1750mm Min 600mm
Gate Opening: Max 1630mm Min 480mm
Mounting Type: Post or Wall
Gate Hoop: 42.4mm diameter aluminium
Gate Height: 1000mm above the floor
Finish: Aluminium body and powder-coated hoop
*To fit into a Max Opening of 1750mm (Leaving a clear opening of approx: 1630mm when the gate is open)
*To fit into a Min Opening of 600mm (Leaving a clear opening of approx: 480mm when the gate is open)
Ball fence gate with Powdercoated aluminium hoop

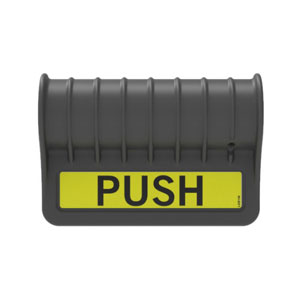

BFGHAN-P Ball Fence Gate Handle - Black Plastic
KIT23 Gate to post fixing kit -Up to 63mm dia post
KIT24 Gate to post fixing kit -Up to 90mm dia post

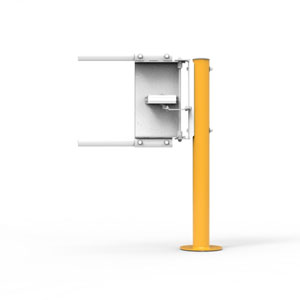

BFSGP90SM Ball Fence Swing Gate Post Surface Mount 90 x 100mm - Powdercoated (Gate fixings supplied)

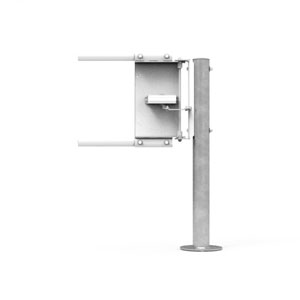

BFSGP90SM-G Ball Fence Swing Gate Post Surface Mount 90 x 100mm - Galvanised (Gate fixings supplied)
BFGPWB-SM Ball Fence gate post for 48 x 1017mm W-Beam Surface Mount - Galvanised (Gate fixings supplied)

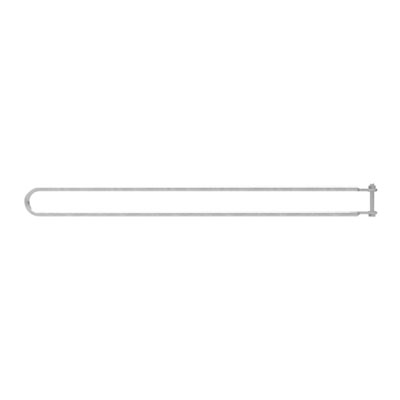

DGL43-G Double Gate Latch o suit 43mm OD - Galvanised

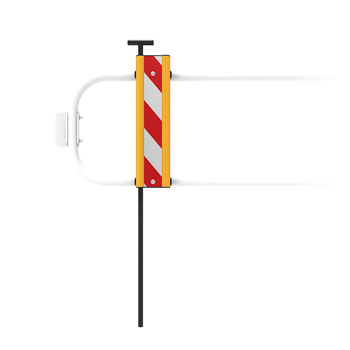

BFSGDB Ball Fence Swing Gate Drop Bolt

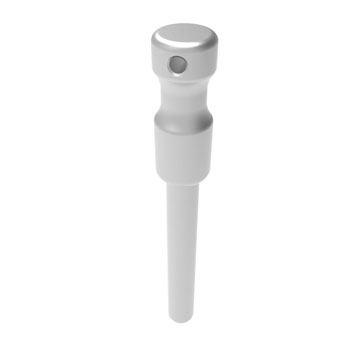

BFSGHOP Ball Fence Swing Gate Hold Open Pin
