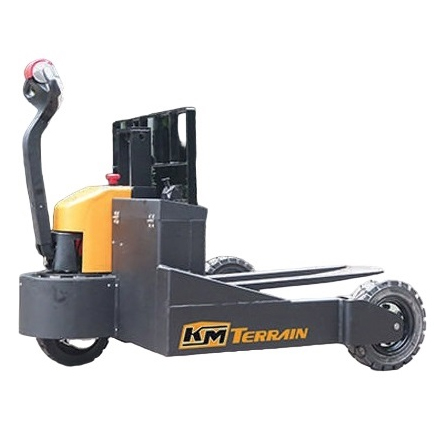

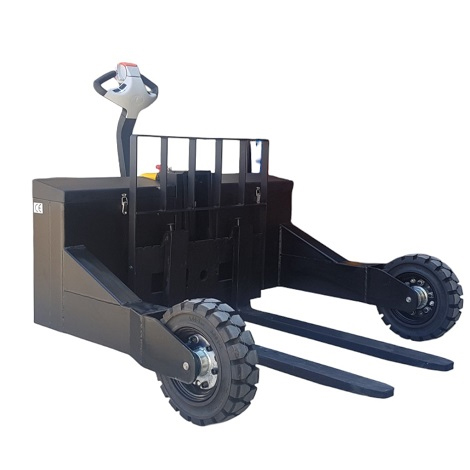

KM Terrain Electric Pallet Truck Perfect for nurseries and tile companies, where moving pallets over unsealed ground is a must. With ample power and superior wheels, rock, dirt and gravel don’t stand a chance – you’ll wonder how you ever did the job without it.
KM Terrain Electric Pallet Truck: When you need to move pallets outside the warehouse, the KMT series cannot be beaten.
| Distinguishing mark | |||
| 1.1 Manufacturer | KM Terrain | ||
| 1.2 Model designation | KMT-1503 | KMT-2003 | |
| 1.3 Rated Capacity | Q (kg) | 1500 | 2000 |
| 1.4 Load centre | c (mm) | 600 | 600 |
| 1.5 Wheel Base | mm | 1100 | 1100 |
| Weights | |||
| 2.1 Service weight (including battery): | kg | 565 | 665 |
| Types, Chassis | |||
| 3.1 Tyre Type Drive Wheel/ Load Wheels | Rubber/Rubber | Rubber/Rubber | |
| 3.2 Tyre Size, Drive Wheel (diameter x width) | mm | 300x125 | 300x125 |
| 3.3 Tyre Size, Load Wheel: (diameter x width) | mm | 406x110 | 406x110 |

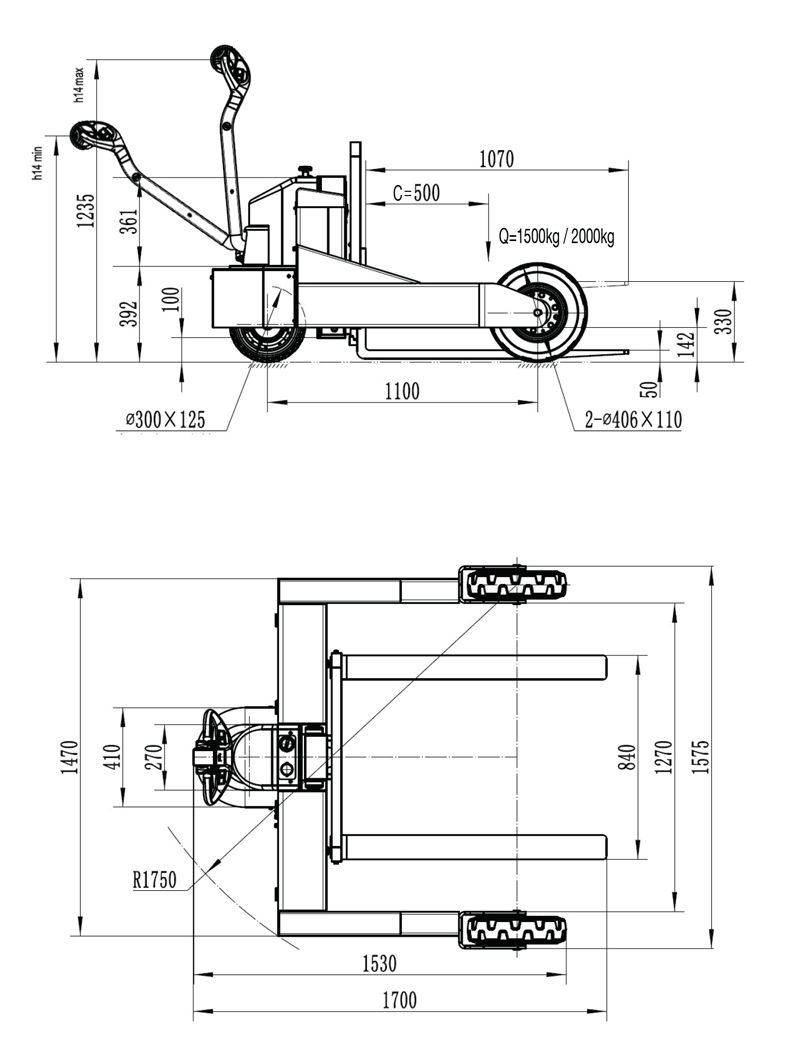

| Dimensions | |||
| 4.1 Lift Height | h (mm) | 330 | 330 |
| 4.2 Height drawbar in driving position Min/Max | h (mm) | 880/1250 | 880/1250 |
| 4.3 Lowered Height | h (mm) | 50 | 50 |
| 4.4 Overall Length | l (mm) | 1700 | 1700 |
| 4.5 Overall width b | b/b (mm) | 1575 | 1575 |
| 4.6 Fork Dimensions | s/ e/ l (mm) | 35/100/1070 | 40/100/1070 |
| 4.7 Fork Carriage Width | (mm) | 840 | 840 |
| 4.8 Outside Width of Forks | (mm) | 840 | 840 |
| 4.9 Distance Between legs | (mm) | 1270 | 1270 |
| 4.10 Ground Clearance Below mast | m (mm) | 100 | 100 |
| 4.11 Turning Radius | R (mm) | 1750 | 1750 |
| Performance Data | |||
| 5.1 Travel Speed, Laden/Unladen | km/h | 3.5/7 | 3.5/7 |
| 5.2 Max Gradeability, Laden/Unladen | % | 5/10 | 5/10 |
| 5.3 Service brake type | Electromagnetic | Electromagnetic | |
| 5.4 Lift Speed with Load | mm | 13 | 13 |
| Electric-engine | |||
| 6.1 Drive Motor Rating | AC | 1.5KW | 1.5KW |
| 6.2 Lift Motor Rating | DC | 24V/800W | 24V/1300W |
| 6.3 Maximum Allowed Battery Size | mm | 380x170x230 | |
| 6.4 Battery Voltage/nominal capacity K5 | V/Ah | 2x12/100 | 2x12/100 |
| 6.5 Battery Weight | kg | 70 | 70 |
| 6.6 Controller | Curtis | 1232E-2121 | 1232E-2121 |
| Addition data | |||
| 7.1 Type of Drive Unit | AC | AC | |
| 7.2 Steering type | Mechanical | Mechanical | |
| 7.3 Sound Pressure level at the driver's ear | 74 | 74 | |
