Schuetz ECOBULK MX-EV FDA 1000L with EVOH Permeation Barrier

Schutz ECOBULK MX-EV FDA 1000 Litre container transports and stores raw and processed food products and pharmaceutical and cosmetic raw materials. Including an EVOH permeation barrier as an inner layer is a notable feature, as it increases the shelf life of the stored products.

Here's a summary of the key features and specifications:

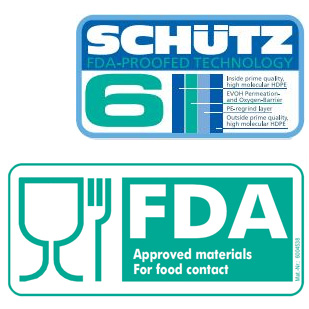

Material: The inner bottle is extrusion blow-moulded high-molecular, high-density polyethylene (HDPE) with an integrated EVOH permeation barrier.

Barrier Properties: The EVOH layer acts as a highly effective barrier against gases such as oxygen, nitrogen, and carbon dioxide, enhancing the preservation of the stored contents.

Odour and Flavor Retention: The container prevents the escape of odours and flavours, ensuring the integrity of the stored products.

FDA Approval: The container is FDA-approved, and this is easily identifiable through the green FDA sticker, screw cap, and handle.

Antistatic Properties: The container has antistatic properties, making it suitable for transporting food products and similar fillings.

Specifications:

• Certifications: UN 31 HA1/Y (optional)
• Maximum Density: 1.6
• Capacity: 1,000 litres (275 gallons)
• Outlet Valves: Screwable butterfly valve DN 50, Screwable ball valve DN 50
• Filling Opening: DN 150 with a screw cap, DN 225 with a screw cap
• Dimensions: 1200 x 1000 x 1160mm (L x W x H)
• Weight: 56 kg with steel pallet
• Static Load: Max. 4-high
• Optional Features: UV and light protection for the filling product (contact RJ Cox for pricing).
• Pallets: 4-way entry steel frame steel skid

Attention:

• The information provided is based on the manufacturer's present knowledge and experience.
• The user must conduct tests to ensure material compatibility and general suitability for the intended purpose.
• Legal obligations cannot be derived from the manufacturer's statements.
• The customer or filler is responsible for complying with local laws and regulations.
