Heavy Duty Steel Support Trestle - ATS

Heavy Duty Steel Support Trestle - ATS

Heavy Duty Steel Support Trestle - ATS

Price: AUD $561.00 (Ex GST AUD $510.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

The ATS Heavy Duty Support Trestle safely supports industrial loads around the workplace or construction site.

Heavy Duty Steel with 5000kg Distributed Load Capacity.

FEATURES:

Heavy-duty steel construction for maximum load support is available in 4 sizes
Easy to assemble - Supplied standard as flatpack (for on-site assembly)
Ideal for industrial or construction applications
Meets relevant Australian Standards
Enamel paint finish
Trestles are sold individually. A minimum of 2 trestles is required.
Also available:
Standard model (ATSW) with wheels
Adjustable height with lockable wheels (ATSJ) or without wheels (ATSJW)

Specifications of ATSW Support Trestle with Wheels

Model	Distributed Load (kg)	Length (mm)	Height (mm)	No. of Legs	Weight (kg)

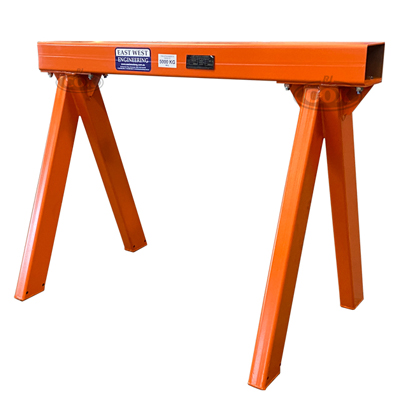

ATS70-120	5000	1200	700	2	35
ATS90-120	5000	1200	900	2	40

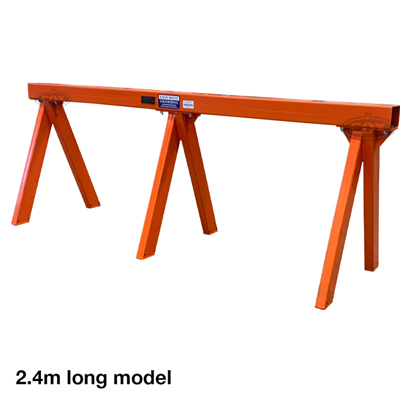

ATS70-240	5000	2400	700	3	60
ATS90-240	5000	2400	900	3	68

OPTIONAL - ATR120 Rubber Channel can be fitted to the trestle beam, providing a non-slip surface to help reduce movement and load damage.

1, 2 or 3 strips can be fitted across the width of the trestle beam.
NB: 2 x 1200mm lengths required for each strip on 2400mm trestle

« Adjustable Height Support Trestle with Wheels - ATSJW

Megabench Workbench with Galvanised Deck Top »
