Introducing the AFT Glass A Frame Trolley: Your Solution for Storing and Transporting Glass and Sheet Materials.
Unlock efficiency and safety in your operations with the AFT Glass A Frame Trolley. Fitted with quick release wheels, 4 way fork access and crane lugs.
Engineered for the storage and transportation of glass, stone, and various sheet materials, this versatile tool empowers your workflow whether by forklift, crane, or manual maneuvering.
Benefits of AFT - A Frame Trollley with quick release castors.
Versatility: Designed for storing and transporting glass, stone, and sheet materials, perfect for both factory use and on-site transport.
Secure Load Handling: Four adjustable clamp bars and detachable ratchet straps ensure your load stays firmly in place during transit.
Protection and Stability: Rubber profiles safeguard your materials from damage and minimize movement, while heavy-duty construction ensures maximum stability.
Easy Handling: Enjoy effortless maneuverability with 150mm poly wheels equipped with brakes, allowing smooth navigation around the worksite.

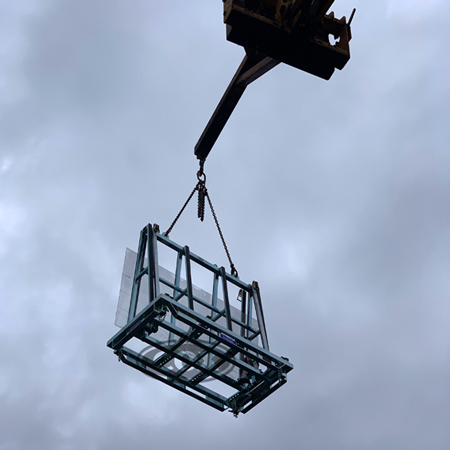

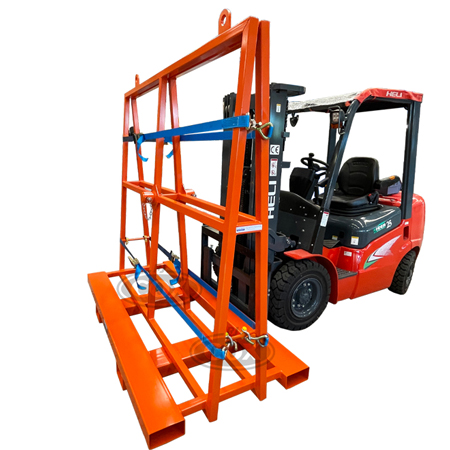

Convenient Design: With 4-way fork access, crane lugs, and quick-release wheel kit, transport and setup are hassle-free.
Tailored Solutions: Choose from various load capacities (1500kg & 2000kg models available) to suit your specific needs.

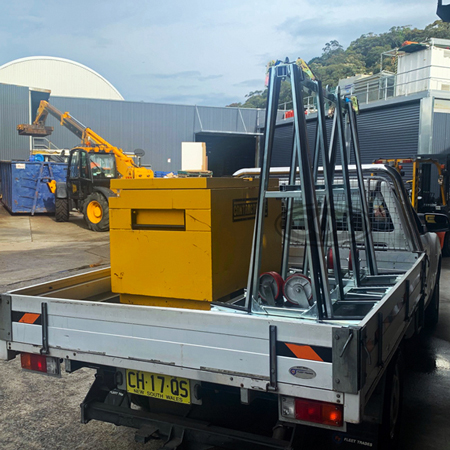

Space Optimization: The AFT80-120 base is crafted to maximize space efficiency on a ute tray and fits through standard doorways.
Storage Versatility: The AFT115-120 base features racking locators for seamless integration into highbay racking systems.
Durable Finish: Zinc coating ensures longevity and resistance to corrosion.
Castors are to be fitted on-site. The AFT Glass A Frame Trolley delivers reliability and performance for your material handling requirements.
Specifications of A Frame Glass/Sheet Material Trolleys
Model |
Working Load Limit (kg) |
Max. Load Height |
Max. Load Depth* |
Overall Dimensions L x W x H |
Front Size |
Front Centres |
Unit Weight (kg) |
AFT80-120 | 1500 | 1200 | 215 | 1500 x 800 x 1535 | 250 x 80 | 450 |
105 |
AFT115-120 | 2000 | 1200 | 340 | 1800 x 1150 x 1535 | 250 x 80 | 450 |
130 |
AFT120-180 | 4000 | 1800 | 390 | 2475 x 1285 x 2215 | 160 x 60 | 900 | 200 |
NB: All Dimensions are in mm.
* Maximum depth of load that can be stored on each side of trolley
