Welding Boom

The AWH30 Welding Boom is a versatile tool designed to enhance welding productivity and safety by providing an extended coverage area for welding while reducing trip hazards and floor clutter.

Here are some of its key features and options:

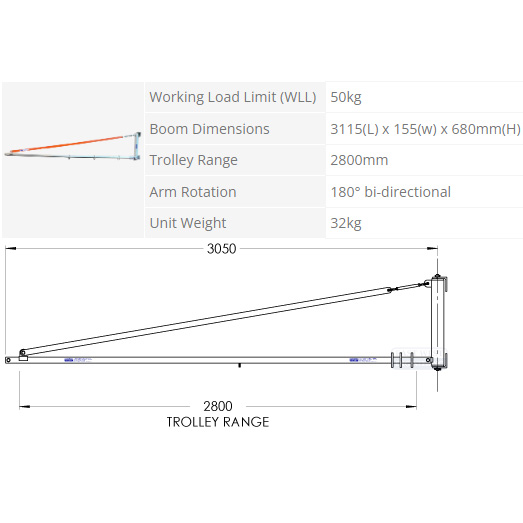

Welding Boom Length: 3.1 meters, providing an extended reach for welding operations.

Bi-Directional Rotation: The boom arm can rotate 180° in both directions, allowing for flexible positioning and access to various welding angles.

Wire Feeder Trolley: The boom is equipped with a 4-wheel trolley designed to support and hold the wire feeder, helping to keep the welding area organised.

Levelling Mechanism: The top strut of the boom features a turnbuckle that can be used to level the assembly for precise welding applications.

Cable Support: Hangers along the boom allow secure and organised cabling placement, reducing the risk of tangling or tripping hazards.

Wall Mounting: Wall mount brackets are supplied with the boom, allowing it to be attached to a wall for stability and positioning.

Welder Comfort and Efficiency: Helps reduce welder fatigue and strain by improving access to the welding area and minimising non-arc time activities.

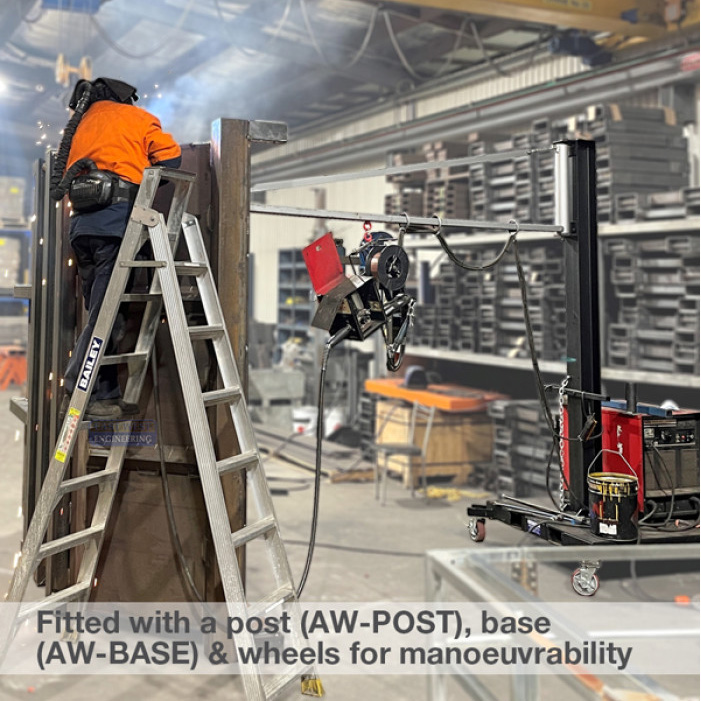

Optional Floor Mounting: An optional post (AW-POST) is available for floor mounting, giving you flexibility in setting up the boom.

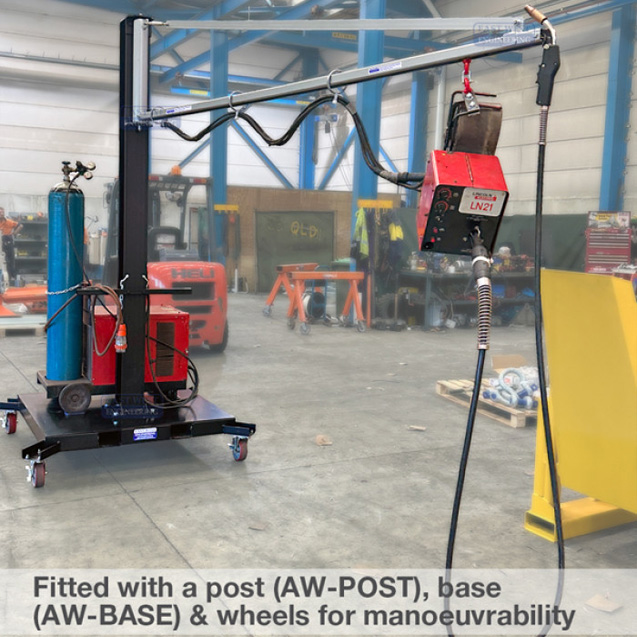

Optional Base: The optional base (AW-BASE) allows you to either floor mount the unit or fit it with an optional wheel kit for increased maneuverability.

Crane Compatibility: When used with the AW-POST, the AW-BASE is fitted with fork pockets, making it suitable for crane operations.

Compliance with Standards: The AWH30 Welding Boom is designed and engineered to meet relevant Australian Standards to ensure safety and quality.

Finish: The boom features an enamel paint finish for durability and protection.

Assembly: The AWH30 Welding Boom is supplied partially assembled, which simplifies on-site installation. However, please note that wire feeders and welding equipment are omitted and must be sourced separately.

Optional Base (AW-BASE): This base is intended for use with the AW-POST and provides the flexibility to mount the unit on the floor or make it mobile with the optional wheel kit.

In summary, the AWH30 Welding Boom is a versatile and safety-focused tool designed to improve welding operations by extending the reach and reducing potential hazards in the welding area. It offers multiple configuration options to suit your specific needs and is designed to meet Australian Standards.
