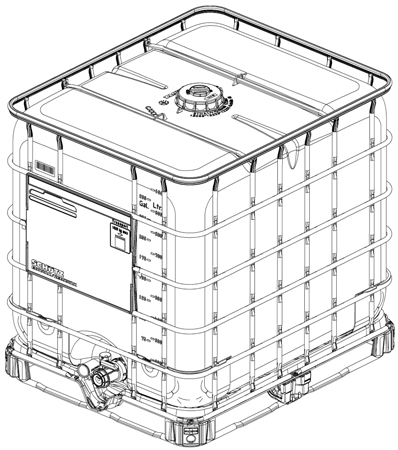

The ECOBULK MX-EX by Schuetz is a 1000-litre bulk container designed for use in explosion-hazardous and endangered operation premises classified as Zone 1 and Zone 2 while adhering to statutory and company-specific safety precautions and regulations.
The container features:
Antistatic Outer Layer: Protects the container from hazardous electrostatic charge.

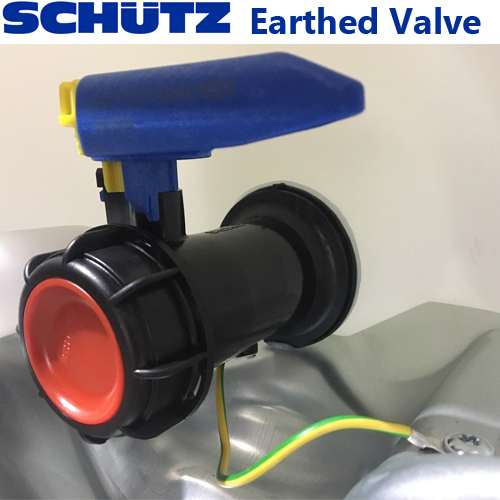

Earthed Outlet Valve: Discharges the electrostatic charge of the filling product, ensuring safety.
Electrostatic Safety: Electrostatically safe within the context of the Cenelec Report CENELEC TR50404 (2003) and TRBS 2153.

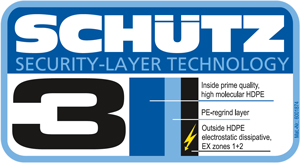

Security Layer Technology: Incorporates security layer technology for enhanced safety.
High-Quality Materials: Inside Prime Quality High Molecular HDPE. Outside HDPE electrostatic dissipative for EX zones 1+2.
Inner Bottle: Inner and intermediate layers are made of high-molecular, high-density polyethylene (HDPE)—antistatic outer layer for added safety.
Optional UV and Light Protection: Additional UV and light protection for the filling product.
Outer Container: Welded tubular steel grid, galvanised for durability.
Bottom Plate: Made of steel to provide stability and facilitate minimum residual contents from the inner container.

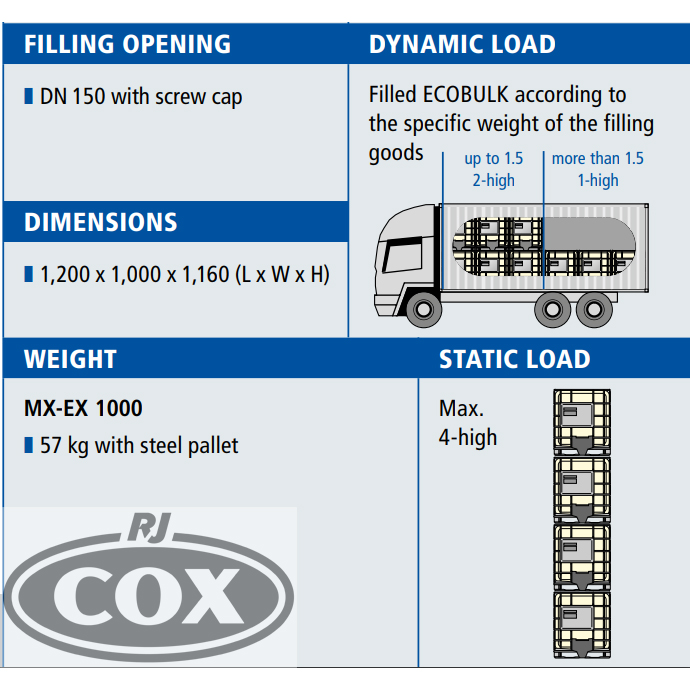

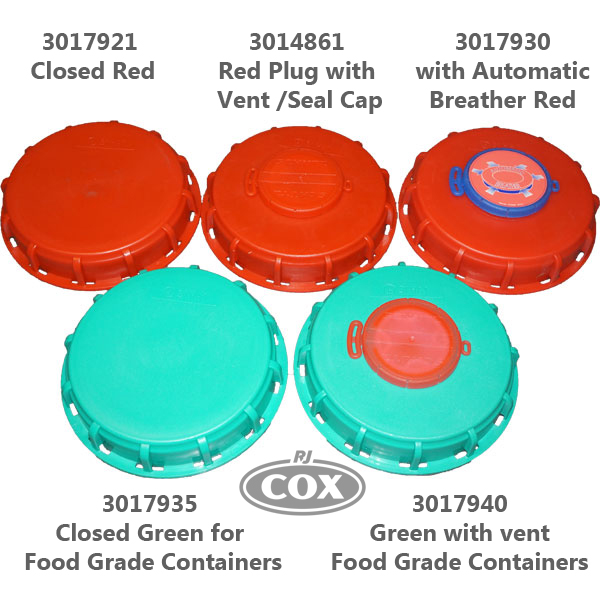

Filling Opening: Screwcap DN150 / 6", PE-HD, red O-ring gasket TPE Sealing-cap red.

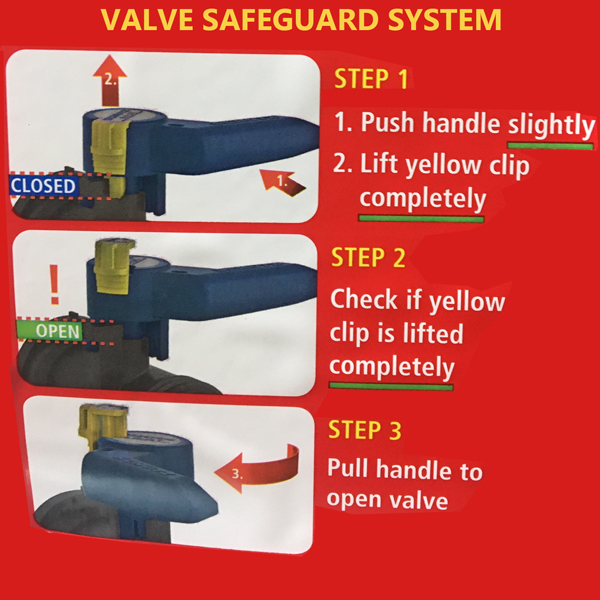

Outlet Valve: Earthed integrated butterfly-valve DN50/2" with features w/2" adapter.
Certification: Certified for EX zones 1 and 2 according to IEC TS 60079-32-1 and TRGS 727.
UN-Marking: UN_31HA1/Y/MM YY/L/SNCH/17B004/SCHÜTZ#/4056/1724/1060L/55KG/100KPA.
Heavy Metals: The concentration level of heavy metals (Pb, Cd, Cr VI, and Hg) in packaging does not exceed 100 ppm.
Delivery: Ready for filling. The customer or filler is responsible for testing the material compatibility of the filling material with the packaging.
Order Code: 4042280.
Attention:
The abovementioned statements are based on our present knowledge and experience. They do not discharge the user from their own tests. A legal
obligation cannot be derived from our statements. The customer must observe local laws and regulations on their own responsibility.
The Customer or Filler is responsible for testing the material compatibility of the filling material with the packaging as well as the general suitability
for the intended purpose.
Please note that for EX-Applications, the applicable contents of the IEC TS 60079-32-1 resp. TRGS 727 need to be compiled independently of
the information is given in the safety data sheet (SDS)
