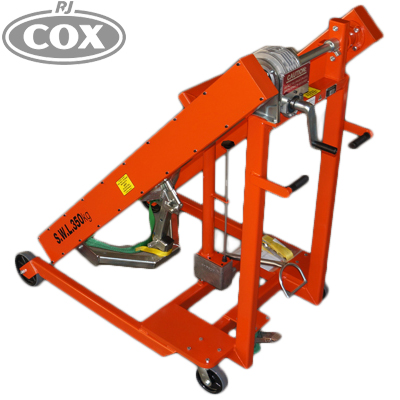

Rim-Grip Drum Lifting and Tipping Machines are specialised equipment for safely handling and tilting various drum sizes and types, such as steel, plastic, or fibre drums.
These machines offer a range of features that make them valuable for industrial applications:
Single Operator Efficiency: Increases operational efficiency and reduces labour requirements.
Access in Tight Spaces: Can lift and tilt drums in locations where a forklift or other equipment may have difficulty accessing. This capability is handy in areas with limited space or confined workspaces.
Versatility in Drum Types: These machines are compatible with various drum sizes and types, including steel, plastic, or fibre drums. This versatility allows for handling different drum materials commonly used in multiple industries.
Screw-Operated Rim Clamp: Comprising a large, fixed lower section and a fully adjustable upper section. This clamp securely holds the drum in place during lifting and tilting operations.
Efficient Drum Handling: Drums can be lifted and manipulated once the clamp is securely attached to the drum, simplifying the transfer and tilting of drums as needed.
Benefits of Grip-Type Units: Rim-Grip machines offer the advantages associated with grip-type drum handling units, which include stability, safety, and ease of use.
Australian Made: The machines are manufactured in Australia
Made-to-order: It's important to note that Rim-Grip Drum Lifting and Tipping Machines are made-to-order items.
Specifications and Models of Rim Grip Drum Lifting and Tipping Machines
Model Number
|
Max Load |
Length (mm) |
Width (mm) |
Straddle Width (mm) |
Height (mm) |
Wheel Diameter (mm) |
Rotation Max Elevation (Centre of Drum) mm |
(Kgs) |
|||||||
R16 |
350 |
1400 |
1050 |
850 |
1080 |
200 / 150 |
1600 |
R20 |
350 |
1750 |
1050 |
850 |
1310 |
200 / 150 |
2000 |
R27 |
350 |
1780 |
1050 |
850 |
1540 |
200 / 150 |
2700 |
