Fallshaw 304 Stainless Steel O-Series Heavy Duty 250kg capacity Castors - 200mm dia Blue Hi-resilience Rubber (Hi-Res) Wheels

Wheels: 200mm Blue Hi-resilience Rubber (Hi-Res)
Non-marking Wheels
20mm bore reduced to 12.7mm with spacer before fitting into fork
O Series Forks: 304 Stainless Steel
Excellent design and performance
230kg Max Load Rating
Available in 150 & 200mm diameter
Standard with Chicago screw axle type 304
Fork and ball bearings type 304.
Axle, bolt and nut type 304.
Rivet and axle bush type 303.
TB spring type 301 full hard
Reducing bush type 303
Base Plate Options - Standard ISO & North American NA
Made in Australia

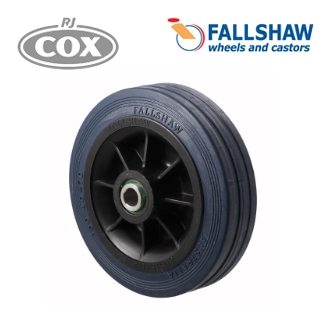

Specifications of HBS200 Non-Marking Wheels

Diameter:	200mm
Tread:	28mm
Hub:	60mm
Bore:	20mm (no bush)
Bush:	12.7mm
Bearing:	Stainless Steel Roller Bearing
Material:	Blue Hi-resilience Rubber (Hi-Res)
Base Plate:	ISO (Standard) or NA (North American)

Specifications of HBS200 200mm dia Stainless Steel Castors

Castor Code	Description	Wheel Diameter (mm)	Max Load (kg)	Mount Height (mm)	Turning Radius (mm)
HBS200	200mm dia Wheel	200	250	239	-

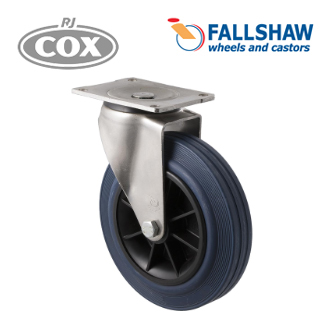

HBS200/OSP	Swivel Plate				152
HBS200/HSF	Fixed Plate				-

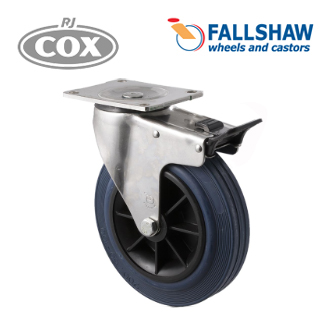

HBS200/OSPTB	Total Brake				162
HBS200/OSPDL	Swivel Plate Direction Lock				162
Add N for NA Base Plate
