Fallshaw O Stainless Castors - 200mm PU on Nylon Wheel

Fallshaw O Stainless Castors - 200mm PU on Nylon Wheel

Fallshaw O Stainless Castors - 200mm PU on Nylon Wheel

Price: AUD $62.76 (Ex GST AUD $57.05)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw 304 Stainless Steel O-Series Heavy Duty 500kg Capacity Castors 200mm dia Poly on Nylon Wheels.

FEATURES OF 200MM Fallshaw O Stainless Castors:

Wheels: 200mm x 48mm Polyurethane on Nylon
20mm bore reduced to 12.7mm with a spacer before fitting into the fork
O Series Forks: 304 Stainless Steel
Excellent design and performance
500kg Max Load Rating
Available in 100, 125, 150 & 200mm diameters
Standard with Chicago screw axle type 304
Fork and ball bearings type 304.
Axle, bolt and nut type 304.
Rivet and axle bush type 303.
TB spring type 301 full hard
Reducing bush type 303
Base Plate Options - Standard ISO & North American NA
Made in Australia

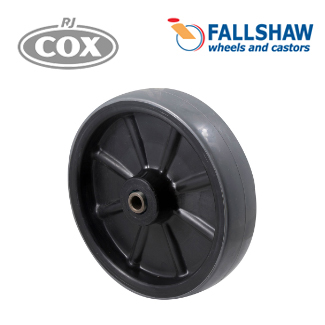

Specifications for Fallshaw HUS200 Wheels:

Diameter:	200mm
Tread:	48mm
Hub:	60mm
Bore:	20mm (no bush)
Bush:	12.7mm
Bearing:	304 Stainless Steel Roller Bearing
Material:	Polyurethane on Nylon
Base Plate	ISO (Standard) or NA (North American)

Specifications of Fallshaw HUS200 200mm dia 304 Stainless Steel Castors:

Castor Code	Description	Wheel Diameter (mm)	Max Load (kg)	Mount Height (mm)	Turning Radius (mm)
HUS200	200mm dia Wheel	200	450	239	-
HUS200/OSP	Swivel Plate				152
HUS200/HSF	Fixed Plate				-

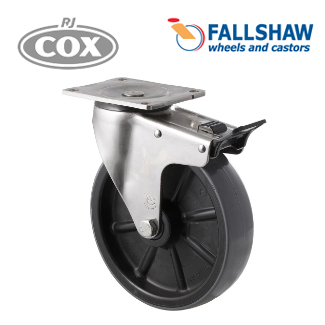

HUS200/OSPTB	Swivel Plate Total Brake				162

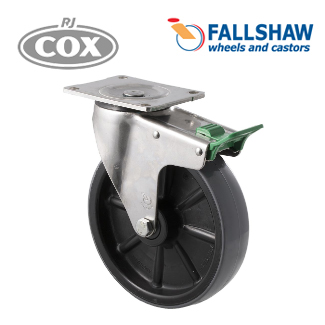

HUS200/OSPDL	Swivel Plate Direction Lock				162
Add N for NA Base Plate

« Fallshaw O Stainless Castors - 200mm Grey Rubber Wheel

Fallshaw O Stainless Castors with 150mm Poly on Nylon Wheels »
