Bishamon Battery Powered Mobile Scissor Lift

Bishamon Battery Powered Mobile Scissor Lift manufactured in Japan the Bishamon range of Battery Electric Scissor lifts - 150kg to 800kg models with lift heights 730mm - 1600mm.

Bishamon Range of Scissor Lifts is designed in Japan and manufactured in their own Taiwan factory with the same Quality Control, ensuring they maintain the Highest Standard of Quality as expected by the Bishamon Brand.

Benefits of Bishamon Battery Electric Scissor Lift Tables

Available in single and Double Scissor Lifts

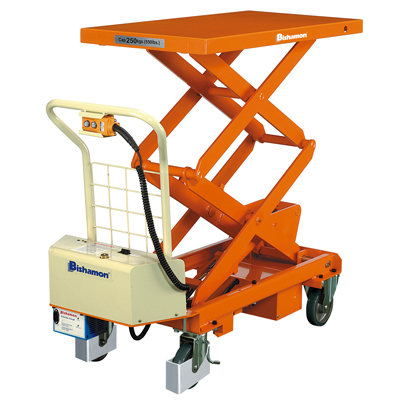

X-Series Single Scissor Lifts & 2X-Series Double Scissor Lifts
Heavy-duty construction with captured scissor rollers for maximum stability
Heavy-duty maintenance scissor lock pin
Removable push-button control on cord with convenient handle mount
Ergonomic handle with integrated safety mesh
Easily accessible On/Off switch with integrated circuit breaker
Enclosed automatic charger with removable power cord
Green-Yellow-Red indicator lights provide a quick indication of battery charge
Easily accessible, adjustable lowering speed control
The upper travel limit switch prevents damage to the hydraulics when raised to a maximum height
High-quality casters and wheels for exceptional rollability
Durable powder-coated finish
Also Available in Stainless-Steel

Specifications for Bishamon Mobile Battery-Powered Scissor Lift Tables:

	X-Series SINGLE Scissor Lift			2X-Series DOUBLE Scissor Lift
	BX-30B	BX-50B	BX-80B	BX-30SB	BX-50WB
Capacity (kg):	300kg	500kg	800kg	300kg	500kg
Platform Size (mm):	815 x 500	1010 x 520	1010 x 520	1010 x 520	1010 x 520
Min Platform Height (mm):	290	438	438	431	438
Max Platform Height (mm):	860	1018	970	1610	1600
Dimensions (mm):	1060 x 500 x 880	1270 x 520 x 950	1255 x 520 x 950	1270 x 520 x 950	1270 x 520 x 950
Vertical travel (mm):	570	580	532	1179	1162
Lifting Motor (DC24 SW)	0.55	0.55	2	0.55	2
Battery x 2	24V 12AH	24V 26AH	24V 26AH	24V 26AH	24V 26AH
Built-in Charger 24V 3A	8.5Hr	8.5Hr	8.5Hr	8.5Hr	8.5Hr
Lifting Speed (approx):	10 sec	10 sec	12 sec	12 sec	17 sec
Wheel Diameter (mm):	100	150	150	150	150
Weight (kg):	106kg	157kg	160kg	183kg	200kg
