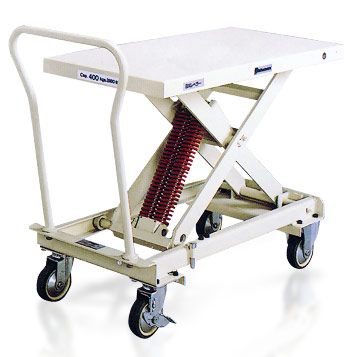

Bishamon Mobile Work Positioner - Self Levelling Platform

Bishamon Mobile Work Positioner - Self Levelling Platform
Bishamon Mobile Work Positioner - Self Levelling Platform

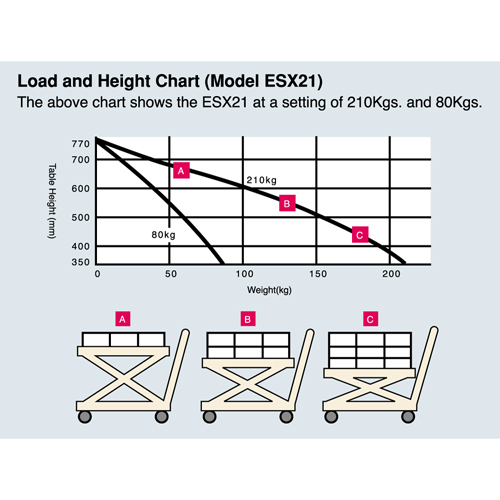

The Bishamon Self-Leveling Mobile Work Table will progressively lower when loaded and rise when unloaded to reduce the need for harmful bending, lifting and stretching. Adjust the spring resistance with the readily accessible gauged weight selector to keep the height of the platform at the ideal height for easier load handling.

Bishamon Range of Scissor Lifts is designed in Japan and manufactured in their own Taiwan factory with the same Quality Control, ensuring they maintain the Highest Standard of Quality as expected by the Bishamon Brand.

Benefits of Bishamon Mobile Self-Leveling Work Platform:

  • Heavy-duty construction with captured scissor rollers for maximum stability
  • Adjustable Spring tension enables the platform to remain at the desired working height
  • Three platform sizes are available
  • Adjustable tension springs in 3 ranges of capacities for each platform size.
  •   NB: 1 capacity only imported in each size imported - other sizes can be ordered especially but will incur lead times.
  • Fully adjustable, weight-sensitive table positioner
  • Mobile Work Positioner fitted with two fixed and two swivel high-quality casters and wheels for exceptional rollability
  • The brake pedal on the right rear castor to park the work platform when loading and unloading the platform
  • Heavy-duty maintenance scissor lock pin
  • Fixed Handle
  • Durable powder-coated finish
  • NB: Distribute the load evenly on the table.

CAUTION: Keep hands, fingers and feet away from all moving parts and components. SEVERE INJURY could result.

Specifications for Mobile Work Positioner

Model: ESX05* ESX08* ESX10 ESX10L* ESX21
ESX21L*
ESX40 ESX60*
Adjustable Range: 10-50kg 20-80kg 30-100kg 40-100kg 80-210kg 55-210kg 100-400kg 220-600kg
Table Dimensions (mm): 450 x 700 500 x 813 518 x 1010
Table Height (mm): 262-659 262-650 262-659 352-787 352-772 374-803 374-794 393-813
Total Height (mm): 798 898 941 961
Total Width (mm): 450 500 520
Total Length (mm): 836 998 1191
Wheels: 100mm Rubber 125mm urethane 150mm urethane
Adjustable Wheels: Support Wheels
Weight: 38kg 62.5kg 104kg 115kg

NB: *ITEMS are not currently imported into Australia as part of the standard range; lead times will occur.

Please contact RJ Cox Office for an estimated lead time.
