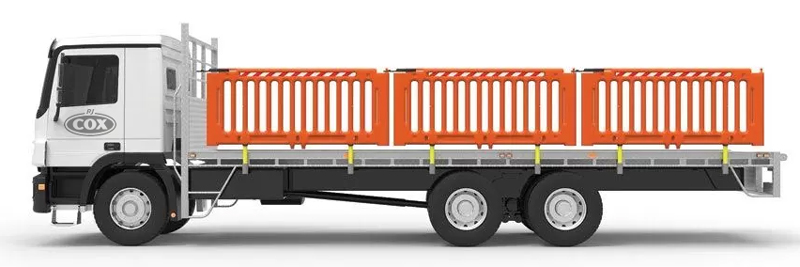

Load-Safe-Q is a portable truck barrier that provides temporary edge protection for truck trays. This system is designed to be kept at the loading point and can be quickly deployed on any truck with conventional tie-down rails. With Load-Safe-Q, the risk of dangerous falls is eliminated.
The unique cast aluminium panel brackets have been configured to work with most tray and curtain-sided trucks. Two brackets per panel are positioned onto the tie-down rails. The panel is then located in the brackets.
Once the panel is installed, the bracket is locked in place and cannot be removed without first removing the panels. Panels are also secured to each other by an adjustable snap latch at the top of each panel.
Benefits of Load-Safe-Q Portable Truck Tray Safety Barrier:
Specifications of Load Safe-Q Truck Tray Temporary Edge Protection System

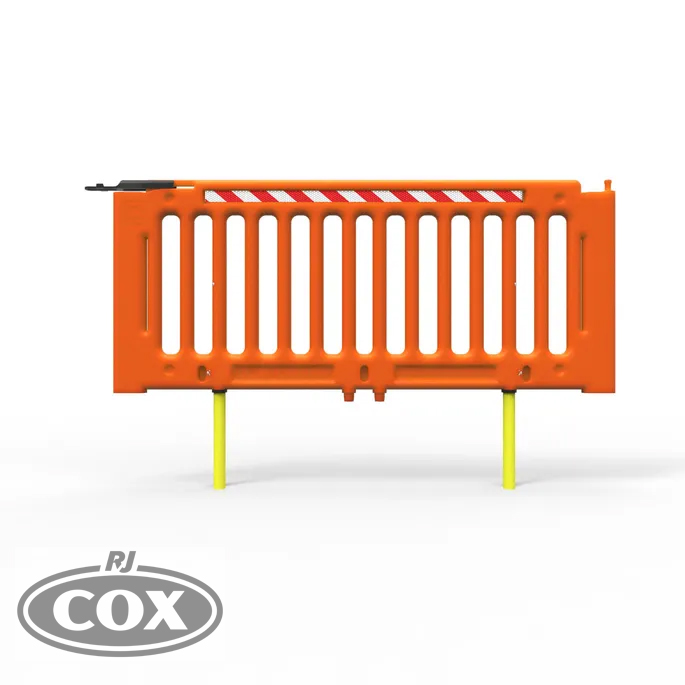

LSQ2130 | Load-Safe-Q Panel | |
Dimensions: | 1000mm high x 2130mm long panel | |
Material: | Blow moulded polyethylene panel | |
Finish: | Hi-Vis Orange | |
Weight: | 18kg (with posts) | |
Fixings: | Panels drop into brackets (no tools required) | |

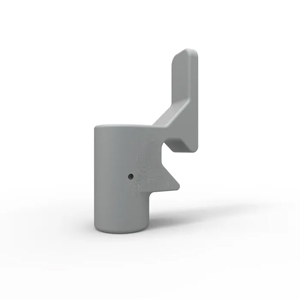

LSB1 | Load-Safe-Q Bracket | |
Material: | Cast aluminium bracket. | |
Weight: | 1.25kg each | |
Fixings: | Brackets hook onto tie-down rails | |

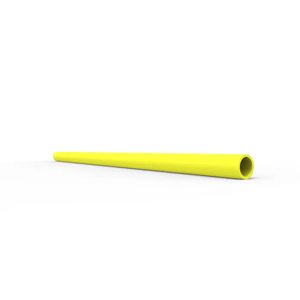

LSP1200 | Load-Safe-Q Replacement Post | |
Material: | Fibre-reinforced plastic internal posts | |
Finish: | FRP Yellow |
Note: Load-Safe is a fall arrest system. It is not intended for use as a load restraint. It is deployed onto the stationary vehicle while loading/unloading goods and removed before the vehicle exits.
