The Heavy-Duty Truck Wheel Stops are manufactured from heavy wall steel tube for concrete installation in truck and machinery parking areas, with galvanised or safety yellow powder-coated finish options.
| Specification | Details |
|---|---|
| Material: | Mild steel tube with 5mm wall |
| Finish: | Hot dip galvanised or hot dip galvanised with yellow powder coating |
| Fixings: | 6 x M10 bolts supplied |
| Installation Surface: | Concrete |
| Applications: | Truck and machinery parking areas |
| Order Code | Description | Dimensions L x H | Weight | Finish |
|---|---|---|---|---|

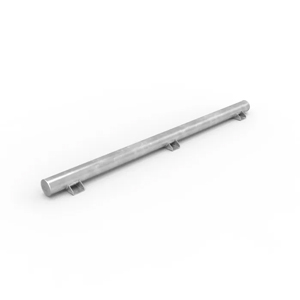

| TS90-G | 90mm dia. | 1800 x 100mm | 21.7kg | Galvanised |

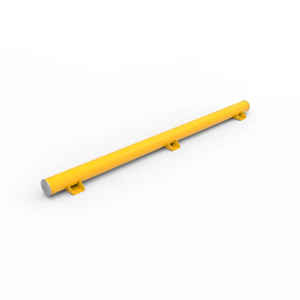

| TS90-P | 90mm dia. | 1800 x 100mm | 21.7kg | Galvanised and powder-coated yellow |

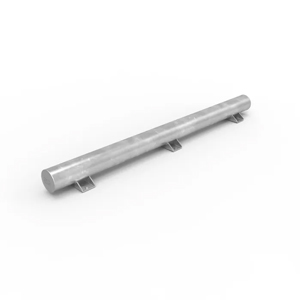

| TS140-G | 140mm dia. | 2400 x 165mm | 45.8kg | Galvanised |

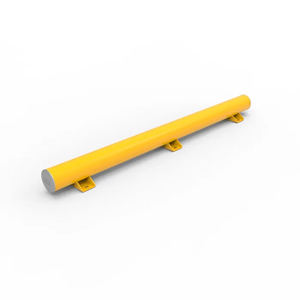

| TS140-P | 140mm dia. | 2400 x 165mm | 45.8kg | Galvanised and powder-coated yellow |
Important: These wheel stops are designed for industry-specific heavy vehicle and machinery applications and may not comply with relevant wheel stop design standards when used in general car parks.

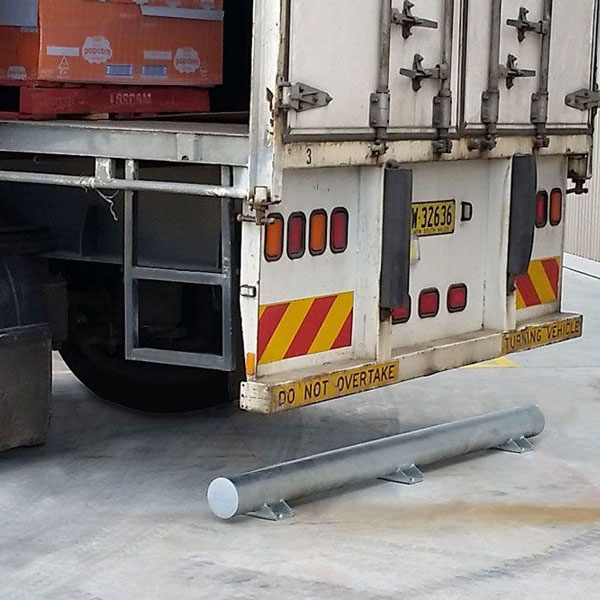

These heavy-duty truck wheel stops are suited to depots, warehouses, transport yards, industrial sites and machinery parking areas requiring a robust vehicle stopping point. They can also be used as heavy vehicle wheel stops, truck parking stops or steel parking barriers.
