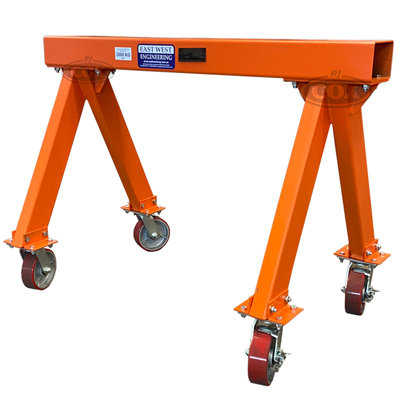

ATSW Heavy Duty Support Trestle with Lockable Castors supports industrial loads and can be moved around worksites without lifting.
| Specification | Details |
|---|---|
| Product Type: | Heavy duty support trestle with lockable castors |
| Load Range: | 2000kg / 2 Tonne to 3000kg / 3 Tonne distributed load |
| Construction: | Heavy-duty steel |
| Mobility: | Lockable castors |
| Supply Format: | Flatpack for on-site assembly |
| Finish: | Enamel paint finish |
| Standards: | Meets relevant Australian Standards |
| Minimum Required: | Sold individually; minimum 2 trestles required |
| Model | Distributed Load | Length | Height | No. of Legs | Unit Weight |
|---|---|---|---|---|---|
| ATSW90-120: | 2000kg / 2 Tonne | 1200mm | 900mm | 2 | 54kg |
| ATSW110-120: | 2000kg / 2 Tonne | 1200mm | 1100mm | 2 | 64kg |
| ATSW90-240: | 3000kg / 3 Tonne | 2400mm | 900mm | 3 | 89kg |
| ATSW110-240: | 3000kg / 3 Tonne | 2400mm | 1100mm | 3 | 104kg |
| Option | Details |
|---|---|

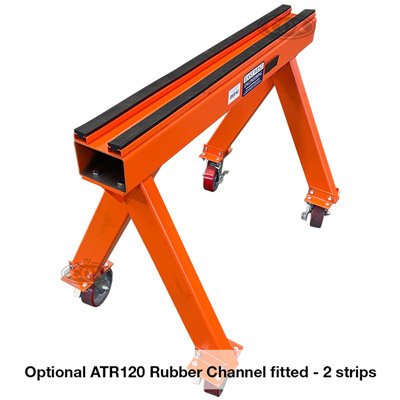

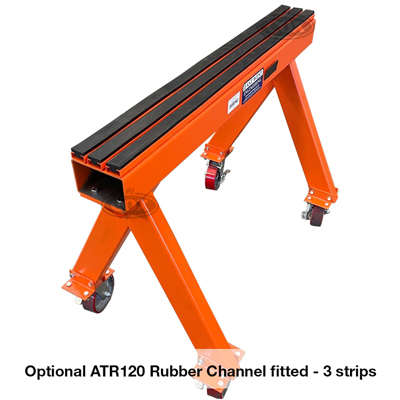

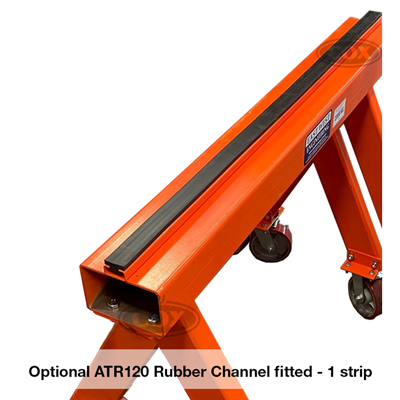

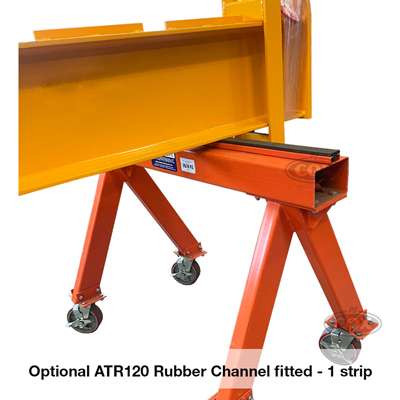

| ATR120 Rubber Channel: | Optional non-slip channel for the trestle beam to help reduce movement and load damage |
| Rubber Channel Fitment: | 1, 2 or 3 strips can be fitted across the width of the trestle beam |
| 2400mm Trestle Requirement: | 2 x 1200mm lengths required for each rubber channel strip |
| Related Models: | ATS standard model without castors; ATSJ adjustable height with lockable castors; ATSJW adjustable height without castors |

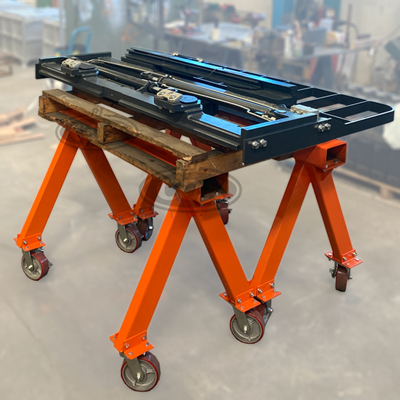

The ATSW mobile support trestle is suited to fabrication, construction, maintenance and industrial workplaces needing a heavy-duty work trestle, pipe trestle, load support stand or movable steel support frame.
