Heavy bumpers for heavy hitters The LDB730 Series loading dock bumpers have been designed for heavy-duty impacts to high-demand loading docks.
Features of Heavy-Duty Loading Dock Bumper
Three mounting variations:
Flush Mounting
Where the loading dock height is appropriate, the LDB730 can be flush mounted to the dock face using suitable concrete screw bolts. (Enquire when ordering).
Raised Mounting

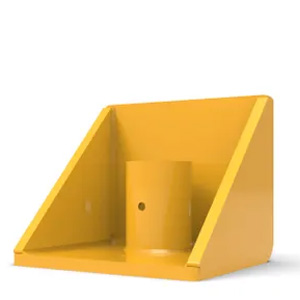

If the dock floor height is lower than ideal, there is the risk of the trailer or truck tray coming in over the dock. The LDB730R elevates the bumper 150mm above the dock floor to ensure the truck is safely captured.
Cantilevered Mounting

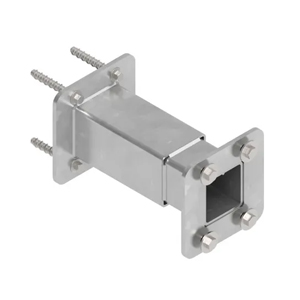

On some docks, the floor projects out over the building structure. In this situation, there is no lower support available for the LDB. The LDB730S is telescopic stand-off support that extends back to the building.
NB: Designed for serious impacts, therefore must be mounted to a suitable reinforced concrete structure
Specifications of Heavy-Duty Loading Dock Bumper
Material: | Hot Dip Galvanised casing with moulded rubber insert |
Weight: | Docking Bumper - 53kg |
Riser - 6kg | |
Stand-off support - 8.1kg | |
Installation: | Wall mount |
