Gas Cylinder Rotatruck Tall

Price: AUD $1,053.80 (Ex GST AUD $958.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Rotatruck Tall Gas Cylinder Hand Trucks are 225kg cylinder trolleys for moving single or dual gas bottles, with a self-supporting frame, Rotacaster multidirectional front wheels and dedicated G1 and G2 configurations.

Features of Rotatruck Tall Gas Cylinder Hand Trucks:

Self-supporting frame reduces the need to continually pull the trolley back while handling gas cylinders.
Rotacaster R3 multidirectional front wheels improve manoeuvrability in confined work areas.
Quick-action safety straps secure cylinders during transport.
Tall curved aluminium frame provides additional support for large gas bottles.
Single and dual cylinder configurations are available to suit different handling requirements.

Specifications for Rotatruck Tall Gas Cylinder Hand Trucks:

Specification	Details
Load Capacity:	225kg
Frame Height:	1320mm
Rear Wheels:	250mm foam-filled
Front Wheels:	125mm Rotacaster R3 triple multidirectional wheels
D-Size Cylinders:	Can be carried with an additional strap

Available Models:

Specification	G1 Single Cylinder	G2 Dual Cylinder
Order Code:	11-23G1	11-23G2
Cylinder Configuration:	Single cylinder	Single or dual cylinder
Handle:	Single D-loop	Double loop

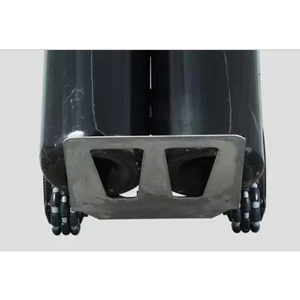

Toe Plate:	Gas bottle toe plate	355mm wide x 305mm deep HA die-cast aluminium toe with kickstand

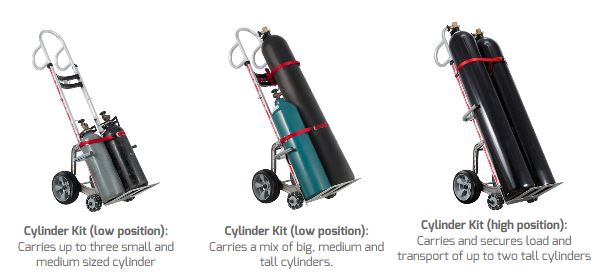

Cylinder Support:	2 magnets for E to G3VPR size cylinders	2-position multi-bottle adapter and folding Wave Bar support
Overall Dimensions:	1650 x 520 x 450mm	1710 x 530 x 720mm
Unit Weight:	14.5kg	17.2kg

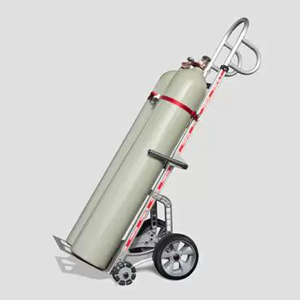

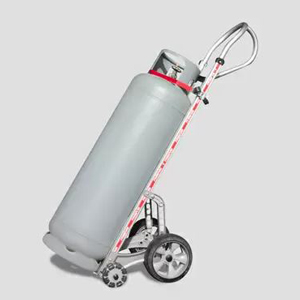

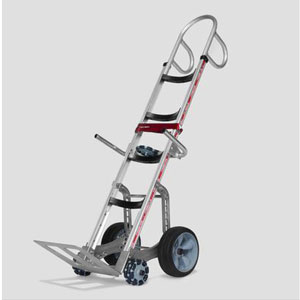

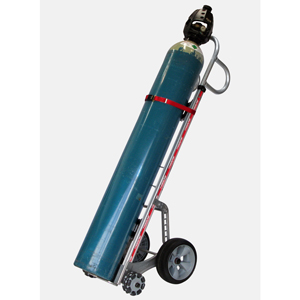

The G1 single-cylinder trolley suits individual gas bottle transport, while the G2 dual-cylinder model adds a multi-bottle adapter, kickstand and Wave Bar support for handling one or two cylinders.

Rotatruck G1 and G2 gas cylinder hand truck configurations
