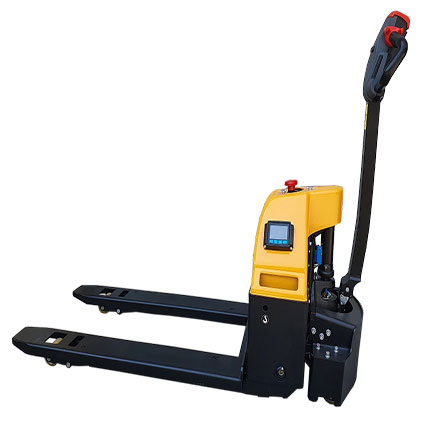

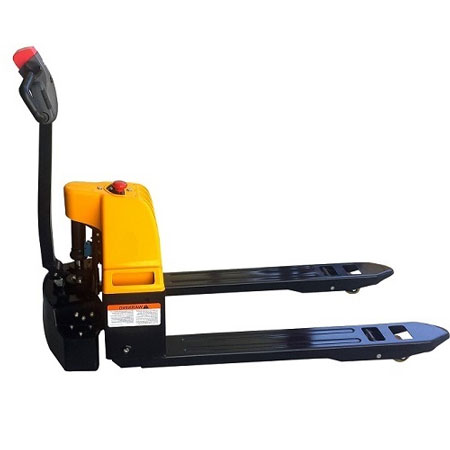

Full Electric Pallet Jack with Weighing Scales MEF15S combines powered pallet handling with integrated weighing for efficient load movement in warehouses, storerooms and delivery operations.
Features of Full Electric Pallet Jack with Weighing Scales MEF15S:
- Fully electric operation provides powered lifting, lowering, turning and travel for efficient pallet handling.
- Integrated weighing scales use high-precision A/D conversion and digital filtering technology to provide stable load readings, including during vibration.
- Adjustable weighing settings let you configure filter intensity, range, and stability time, with an add-up function to combine multiple pallet weights.
- Clear digital display features selectable backlighting, switchable kg/lb units and a 128 x 64 dot matrix screen.
- Magnetic braking helps provide controlled operation during material handling tasks.
- Balance wheels with foot protection support stability while helping reduce the risk of operator injury.
- Polyurethane wheels and tandem rollers provide smooth, non-marking travel and are gentle on warehouse floors.
- Built-in automatic charger includes auto cut-off protection and connects to a standard 240V power outlet.
- Compact electric design suits manoeuvring pallets in warehouses, storerooms, delivery vehicles, and other restricted work areas.
- Service-friendly construction is designed for straightforward dismantling, assembly and maintenance.
Specifications for Full Electric Pallet Jack with Weighing Scales MEF15S:
| Specification | Details |
|---|
| Model / Product Code: |
MEF15S |
| Load Capacity: |
1500kg / 1.5 Tonne |
| Unit Weight Including Battery: |
195kg |
| Minimum Fork Height: |
85mm |
| Maximum Fork Height: |
205mm |
| Overall Length: |
1600mm |
| Overall Width: |
685mm |
| Fork Spread: |
560mm |
| Aisle Width / 1000 x 1200mm Pallet Crossways: |
1780mm |
| Aisle Width / 800 x 1200mm Pallet Lengthways: |
1930mm |
| Battery Dimensions (L x W x H): |
260 x 170 x 210mm |
| Battery Voltage: |
24V |
| Battery Rated Capacity: |
85Ah |
| Lifting Motor Power: |
900W / 24V |
| Lowering Speed With / Without Load: |
20mm/s |
| Lifting Speed With Load: |
30mm/s |
| Lifting Speed Without Load: |
40mm/s |
| Load Cell Sensitivity: |
2mv/v |
| Display: |
128 x 64 dot matrix screen |
| Relative Humidity: |
<85%RH |
This electric pallet truck and weighing pallet jack is designed for moving and weighing palletised loads in warehouses, storerooms, dispatch areas, tailgate loading operations and delivery trucks where efficient powered handling and load checking are required.
