Forklift Tipping Bin TU Lever Release

Price: AUD $4,290.00 (Ex GST AUD $3,900.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

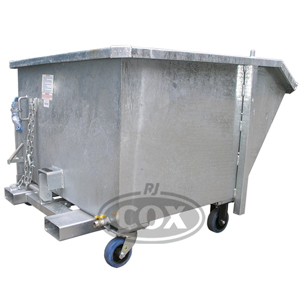

The Forklift Tipping Bin TU Lever Release is a low-profile forklift waste bin made from 3mm plate, with smooth formed edges, a pouring lip and a driver-operated tipping mechanism for efficient material handling.

Features of Forklift Tipping Bin TU Lever Release:

Low-profile design makes the tipping bin suitable for waste handling and emptying in confined working areas.
Smooth formed edges and pouring lip support easy cleaning and make the bin suitable for food industry applications.

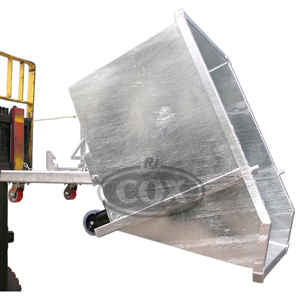

Driver-operated pull cord tipping allows the emptying mechanism to be activated from the forklift driver's seat.
Custom-built shock absorber helps prevent impact forces from being transmitted to the forklift during emptying.
Quick forklift connection supports efficient attachment and removal during material handling operations.
Fork pockets and safety chain provide secure attachment to the forklift during operation.

Specifications for Forklift Tipping Bin TU Lever Release:

Specification	Details
Construction:	3mm plate
Working Load Limit:	1000kg
Bin Length:	1400mm
Bin Height:	940mm
Tipping Mechanism:	Pull cord operated from the forklift driver's seat
Forklift Attachment:	Fork pockets with safety chain
Finish:	Enamel paint or galvanised
Optional Extras:	Crane lugs, wheel kit, drain valve and strainer – P.O.A.

Forklift Tipping Bin TU Model Specifications:

Specification	TU6	TU9	TU12	TU15	TU18
Capacity:	0.5m³	0.75m³	1m³	1.25m³	1.5m³
Bin Width:	700mm	1000mm	1300mm	1600mm	1900mm
Fork Pocket Centres:	380mm	660mm	660mm	660mm	660mm
Unit Weight:	185kg	200kg	215kg	240kg	260kg

Common specifications across all TU models: 1000kg working load limit, 1400mm bin length, 940mm bin height and 185 x 65mm fork pocket size.

Designed as a forklift tipping bin, forklift skip and waste handling bin, the TU series suits factories, warehouses, food processing facilities and industrial workplaces requiring controlled collection, transport and disposal of bulk waste or materials.
