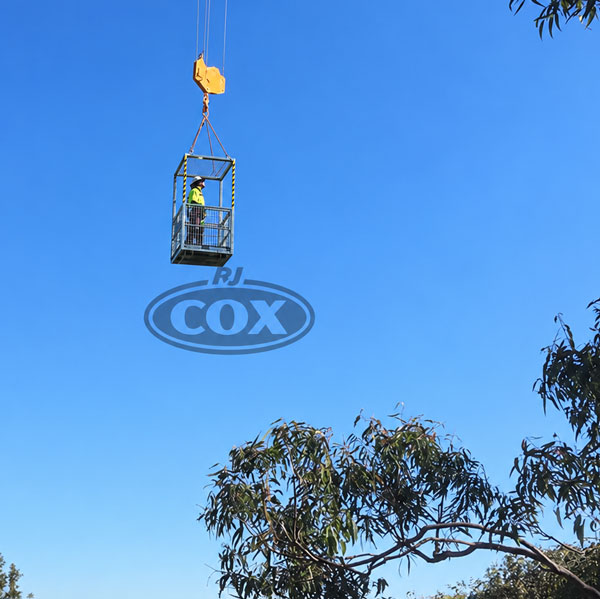

The WP-NCRA 4 Person Crane Cage is designed to safely elevate up to four personnel for short-duration special tasks where scaffolding or a purpose-built access device is not practicable.
Features of the 4 Person Crane Cage WP-NCR:
- Overhead mesh roof provides added protection for personnel working inside the crane cage.
- Enclosed mesh sides help prevent tools and other objects from falling from the work platform.
- Four safety harness anchor points provide dedicated attachment points for personnel working within the cage.
- Integrated handrails help personnel maintain safe positioning and stability while working at height.
- Supplied lifting chains form an integral part of the personnel crane cage for suspended lifting applications.
- Fork pockets for transport allow the cage to be repositioned by forklift when not being used to elevate personnel.
- Supplied compliance documentation includes a load test certificate, risk control measure documents, WorkSafe registration, and comprehensive instructions.
- Zinc finish provides a durable surface suitable for industrial and worksite environments.
Specifications for 4 Person Crane Cage WP-NCR:
| Specification | Details |
| Model: |
WP-NCR |
| Working Load Limit: |
500kg |
| Maximum Capacity: |
4 persons |
| Dimensions: |
1200 x 1100mm |
| Fork Pocket Size: |
185 x 85mm |
| Fork Pocket Centres: |
680mm |
| Unit Weight: |
310kg |
| Australian Standard: |
AS 1418.17 |
| Safety Harness Anchor Points: |
4 |
| Finish: |
Zinc |
| Supplied: |
Assembled |
| Lifting Equipment: |
Lifting chains supplied |
The WP-NCRA personnel crane cage is suited to maintenance, inspection and other short-duration elevated work where personnel must be lifted by crane. Also known as a crane work cage, personnel cage or man cage, it is designed for controlled industrial and worksite access applications.
