The CGC Goods Cage is designed for safe storage and transport of loose or palletised goods by crane or forklift, with a fully opening front gate, removable access ramp and stackable industrial construction.
| Specification | Details |
|---|---|
| Working Load Limit: | 1000kg |
| Suitable Loads: | Loose or palletised goods |
| Crane Lifting Points: | 4-point lifting lugs |
| Forklift Access: | Integrated forklift pockets |
| Stacking: | Up to 3 high empty or 2 high loaded |

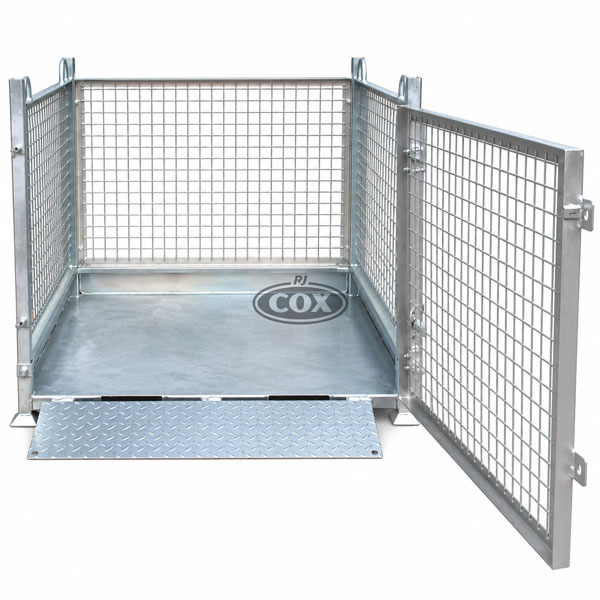

| Gate: | Fully opening front gate |
| Access Ramp: | Removable drop-down ramp |
| Finish: | Zinc sides and gate; enamel-painted base and ramp |
| Lifting Chains: | Not included |
| Model | Internal Clearance | Overall Dimensions | Fork Pocket Centres | Unit Weight | Supplied |
|---|---|---|---|---|---|
| CGC115 | 1050 x 1050mm | 1200 x 1200 x 1180mm | 500mm | 180kg | Flatpack |
| CGC115A | 1050 x 1050mm | 1200 x 1200 x 1180mm | 500mm | 180kg | Assembled |
| CGC130 | 1205 x 1200mm | 1350 x 1350 x 1180mm | 550mm | 210kg | Flatpack |
| CGC130A | 1205 x 1200mm | 1350 x 1350 x 1180mm | 550mm | 210kg | Assembled |
| Fork Pocket Size: | 185 x 85mm across all models | ||||
The CGC crane goods cage is ideal for construction sites, warehouses, workshops, and industrial facilities where cranes or forklifts move loose materials or palletised loads. It also suits searches for a lifting cage, material cage or forklift goods cage.
