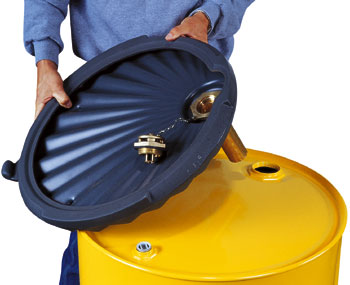

Gator Spill Control Funnels provide a simple, cost-effective way to collect and control liquids while helping keep drum tops and surrounding floors clean. Models are available for non-flammable and flammable liquids.
Features of Gator Polyethylene Spill Control Funnels:
- Suitable for 30- and 55-gallon closed-head drums for convenient liquid collection and transfer applications.
- Wide-diameter, low-profile opening provides a large target area to make pouring quicker and easier.
- Scalloped slope design helps reduce splashing and keeps containers from sitting in their own liquids.
- Large level drainage surface allows paint cans, filters, buckets and other containers to drain easily.
- Cleaner liquid handling helps maintain cleaner drum tops and surrounding floors.
- Optional funnel cover is available for added protection when the funnel is not in use.
- Moulded-in storage hook provides a convenient location for storing the optional funnel cover.
- Flammable-liquid funnel option is available with additional flame arrester, venting and pressure protection features.
Specifications for Gator Polyethylene Spill Control Funnels:
| Specification | Details |
|---|
| Construction: |
Polyethylene |
| Drum Suitability: |
30- and 55-gallon closed-head drums |
| Funnel Capacity: |
9.5 Litres |
| Available Funnel Types: |
Non-flammable liquid funnel and flammable-liquid funnel |
| Optional Accessory: |
Funnel cover |
Gator Spill Control Funnel Models:
| Model | Description | Capacity | Outside Dimensions |
|---|
| 28680: |
Funnel for non-flammables |
9.5 Litres |
533 x 82mm |
| 28681: |
Funnel for flammables |
9.5 Litres |
533 x 82mm |

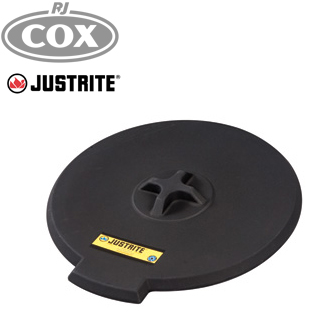

| 28682: |
Cover for funnel |
N/A |
482 x 31mm |

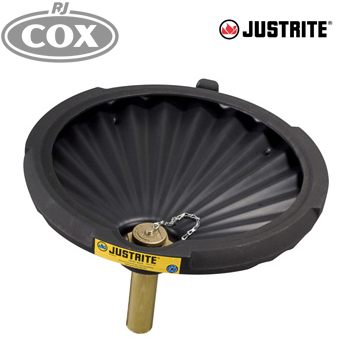

Features of the Gator Polyethylene Funnel for Flammables:
- Drum fill vent includes a 6" perforated brass flame arrester for flammable-liquid applications.
- Threaded bung cap helps seal flammable vapours inside the drum during normal storage conditions.
- Pressure relief valve opens at high temperatures to help protect the drum and reduce the risk of explosion.
- Flame arrester protection helps prevent fire flashback during use.
- Vacuum relief function helps protect against drum collapse as hot contents cool.
Ideal for manufacturing plants, warehouses, oil and gas facilities and other industrial environments, these drum funnels, spill control funnels and liquid transfer funnels help manage spills and control liquid flow into drums, tanks and other containers.
