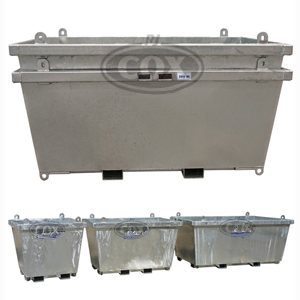

Crane Waste & Storage Bins are heavy-duty bins for manufacturing and construction sites, designed for collecting, transporting and disposing of waste. Models are available for crane or forklift handling with capacities from 0.85 to 2.5 cubic metres.
| Specification | Details |
|---|---|
| WCB Working Load Limit: | 2000kg / 2 Tonne |
| WCH Working Load Limit: | 5000kg / 5 Tonne |
| Finish: | Zinc |

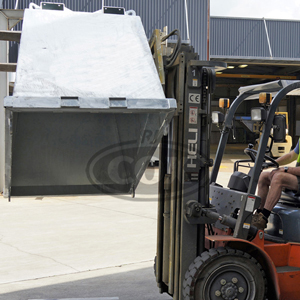

| Forklift Access: | Four-way fork pockets |

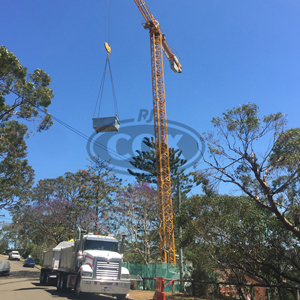

| Crane Lifting: | 4 crane lifting lugs |
| Crane Emptying: | 4 upending lugs |

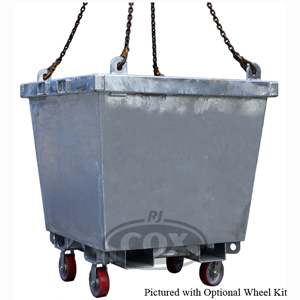

| Optional Wheel Kit: | 150mm diameter wheels, comprising 2 fixed and 2 swivel wheels |
| Model | WLL | Capacity | Dimensions (L x W x H) | Fork Pocket Size 'L' | Fork Pocket Size 'W' | Fork Pocket Centres | Unit Weight |
|---|---|---|---|---|---|---|---|
| WCB9X11 | 2000kg / 2 Tonne | 0.85 cubic metres | 1156 x 1156 x 1100mm | 160 x 95mm | 160 x 75mm | 450mm | 162kg |
| WCB9X17 | 2000kg / 2 Tonne | 1.3 cubic metres | 1716 x 1156 x 1100mm | 160 x 95mm | 160 x 75mm | 450mm | 240kg |
| WCB9X23 | 2000kg / 2 Tonne | 2.5 cubic metres | 2316 x 1516 x 1100mm | 160 x 95mm | 160 x 75mm | 790mm | 335kg |
| WCH23X9 | 5000kg / 5 Tonne | 2.4 cubic metres | 2300 x 1500 x 1092mm | 180 x 80mm | 180 x 80mm | 800mm | 585kg |
These heavy-duty crane bins are suited to construction sites, manufacturing facilities and industrial workplaces for collecting, storing, transporting and disposing of waste materials. They can also be used as crane waste bins, forklift waste bins, storage bins or site rubbish bins.
