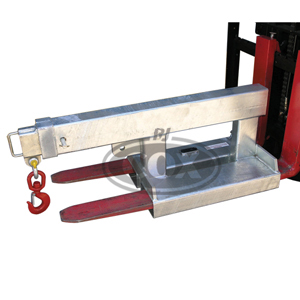

Long Fixed Jib 4.75 Tonne Attachment for Forklift FJCL50

FJCL50 Long Fixed Forklift Jib is a cost-effective slip-on forklift attachment with eight extension positions, a maximum 4750kg / 4.75 Tonne WLL and a telescopic reach extending to 3520mm.

Features of FJCL50 Long Fixed Forklift Jib:

• Long fixed jib design provides extended reach for lifting and positioning loads with a suitable forklift.
• Telescopic extension provides eight working positions, with the supplied data showing extension distances from 935mm to 3520mm.
• Slip-on forklift attachment slides easily onto the fork tines for straightforward fitting.
• Safety chain retention secures the jib attachment to the forklift during use.
• Hook and shackle included are supplied with the jib attachment.
• Maximum 4750kg / 4.75 Tonne WLL is available at Position 1, with Working Load Limit reducing as the jib is extended.
• Zinc-plated finish is supplied as the standard finish on the unit.

Specifications for FJCL50 Long Fixed Forklift Jib:

FJCL50 Working Load Limit by Extension Position:

Important: The supplied source states that the jib can extend up to 3500mm and also lists Position 8 at 3520mm. It also states an overall retracted length of 2100m. These values have been retained without silently changing them and should be confirmed before publication if required.

The FJCL50 long forklift jib is suited to industrial lifting and materials handling applications requiring extra reach from a forklift. It can also be used as a telescopic forklift jib, forklift crane attachment, slip-on lifting jib or long forklift boom.
