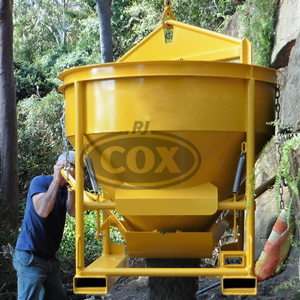

Crane Lift Concrete Kibbles are heavy-duty concrete handling attachments for crane lifting, with adjustable chutes for bottom or side discharge and forklift pockets for transport around construction sites.
| Specification | Details |
|---|---|
| Discharge: | Bottom or side discharge with adjustable chute |
| Discharge Control: | Lever operable from either side |
| Handling: | Crane lift with forklift pockets for site transport |
| Finish: | Safety yellow |
| Application: | Concrete transfer using an overhead crane |
| Model | Volume | Working Load Limit | Filling Height | Dimensions (L x W x H) | Unit Weight |
|---|---|---|---|---|---|
| CKM05 | 0.5m³ | 1500kg / 1.5 Tonne | 1175mm | 1630 x 1255 x 1500mm | 260kg |
| CKM10 | 1m³ | 3000kg / 3 Tonne | 1320mm | 1760 x 1655 x 1705mm | 320kg |
| CKM15 | 1.5m³ | 4000kg / 4 Tonne | 1510mm | 1850 x 1655 x 1970mm | 415kg |

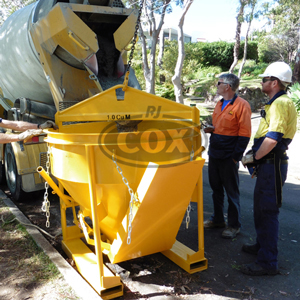

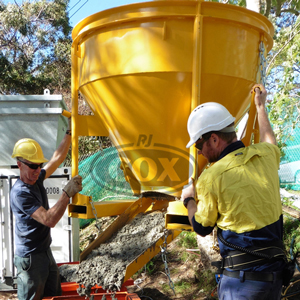

These crane concrete kibbles suit construction and civil works for transferring and placing concrete by overhead crane. Bottom or side discharge options provide flexibility for different pouring locations, while forklift pockets assist with moving the kibble around the site.
