A-JUSTA-FOOT Multi-Adjustable Pedestal Foot

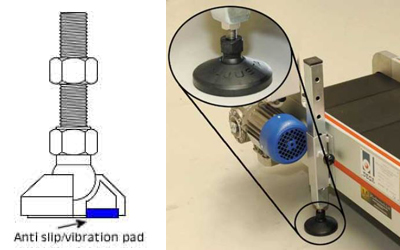

The A-JUSTA-FOOT Ball-Jointed Levelling Foot provides adjustable support for machinery, equipment and frames, with a rubber pad to help absorb vibration. Zinc-plated mild steel and 304 stainless steel stud models are available.

Features of the A-JUSTA-FOOT Ball-Jointed Levelling Foot:

Ball-jointed adjustable design accommodates uneven floors and angled mounting conditions for more stable equipment support.
Vibration-absorbing rubber pad helps reduce vibration transmission while supporting machinery and equipment.
Round and square tube inserts are available for light-wall tubing and can be turned down to suit heavier-wall RHS.
Multiple base and stud sizes provide options for industrial, commercial, workshop and food industry applications.
Choice of stud materials includes zinc-plated mild steel and 304 stainless steel to suit different environments.

Specifications for the A-JUSTA-FOOT Ball-Jointed Levelling Foot:

Specification	Details
Base:	Black glass-reinforced nylon
Ball:	Black glass-reinforced nylon
Pad:	Synthetic rubber, Shore 73
Stud:	Plated mild steel or stainless steel
Nut:	Plated mild steel or stainless steel
Tube Ends:	Glass-reinforced nylon with threaded metal insert
Maximum Adjustable Angle:	20°

20 Series Zinc-Plated Mild Steel Stud Models:

Part No.	Size	A	B	C	D	E	Rating
20/40/M8/60	40xM8	40	60	33	20	M8	350kg
20/40/M8/35	40xM8	40	35	33	20	M8	350kg
20/40/M10/60	40xM10	40	60	33	20	M10	500kg
20/40/M10/35	40xM10	40	35	33	20	M10	500kg
20/60/M12/65	60xM12	60	65	51	25	M12	800kg
20/60/M16/65	60xM16	60	65	51	25	M16	1000kg
20/90/M12/65	90xM12	90	65	51	25	M12	800kg
20/90/M16/65	90xM16	90	65	51	25	M16	1000kg
20/60/M16/150	60xM16	60	150	51	25	M16	1000kg
20/90/M16/150	90xM16	90	150	51	25	M16	1000kg
20/60/M20/100	60xM20	60	100	51	25	M20	1000kg
20/60/M20/165	60xM20	60	165	51	25	M20	1000kg
20/90/M20/100	90xM20	90	100	51	25	M20	1000kg
20/90/M20/165	90xM20	90	165	51	25	M20	1000kg
20/125/M12/65	125xM12	125	65	56	30	M12	900kg
20/125/M16/65	125xM16	125	65	56	30	M16	1100kg / 1.1 Tonne
20/125/M16/150	125xM16	125	150	56	30	M16	1100kg / 1.1 Tonne
20/125/M20/100	125xM20	125	100	56	30	M20	1200kg / 1.2 Tonne
20/125/M20/165	125xM20	125	165	56	30	M20	1200kg / 1.2 Tonne

21 Series 304 Stainless Steel Stud Models:

Part No.	Size	A	B	C	D	E	Rating
21/40/M6/40	40xM6	40	40	33	20	M6	100kg
21/40/M8/80	40xM8	40	80	33	20	M8	350kg
21/40/M10/60	40xM10	40	60	33	20	M10	500kg
21/60/M12/65	60xM12	60	65	51	25	M12	800kg
21/60/M12/165	60xM12	60	165	51	25	M12	800kg
21/60/M16/65	60xM16	60	65	51	25	M16	1000kg
21/90/M12/65	90xM12	90	65	51	25	M12	800kg
21/90/M12/165	90xM12	90	165	51	25	M12	800kg
21/90/M16/65	90xM16	90	65	51	25	M16	1000kg
21/60/M16/165	60xM16	60	165	51	25	M16	1000kg
21/90/M16/165	90xM16	90	165	51	25	M16	1000kg
21/60/M20/100	60xM20	60	100	51	25	M20	1000kg
21/60/M20/165	60xM20	60	165	51	25	M20	1000kg
21/90/M20/100	90xM20	90	100	51	25	M20	1000kg
21/90/M20/165	90xM20	90	165	51	25	M20	1000kg
21/125/M12/65	125xM12	125	65	56	30	M12	900kg
21/125/M16/65	125xM16	125	65	56	30	M16	1100kg / 1.1 Tonne
21/125/M16/165	125xM16	125	165	56	30	M16	1100kg / 1.1 Tonne
21/125/M20/100	125xM20	125	100	56	30	M20	1200kg / 1.2 Tonne
21/125/M20/165	125xM20	125	165	56	30	M20	1200kg / 1.2 Tonne

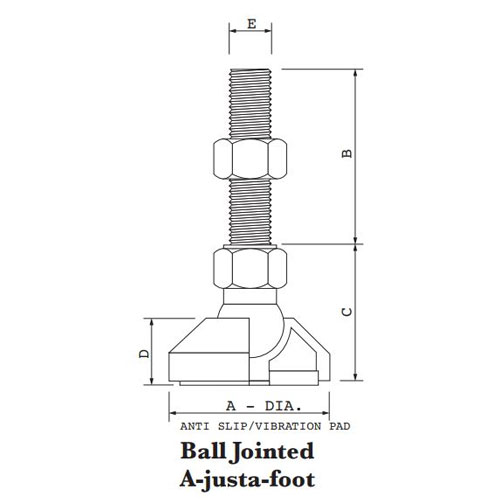

All A, B, C and D dimensions in the model tables are in mm.

A-JUSTA-FOOT adjustable levelling feet suit machinery, benches, frames, conveyors and equipment used in workshops, factories, commercial facilities and food industry environments. They can also be used as machine feet, levelling mounts or vibration-damping pedestal feet.
