Beam clamps are essential tools to suspend loads from girders or I-beams safely. They offer a comprehensive usage capability, accommodating various hoist installations, including manual, electric, and air hoists. These clamps are designed to focus on convenience, efficiency, and safety.
Here are some key features of these crane beam clamps:
Capacity range: Three different models are available, each with a specific load capacity ranging from 1000kg to 3000kg. This allows users to choose the appropriate clamp based on the weight of the load they need to lift.
Robust all-steel construction: The crane beam clamps are constructed using sturdy and durable all-steel materials. This rugged construction ensures their reliability and ability to handle heavy loads safely.
Jaw design: The clamps have jaws that securely grip and clamp over the girder flanges. This feature ensures a stable connection between the clamp and the beam, preventing slippage or movement during lifting operations.
Adjustable width: The crane beam clamps are designed to adjust to suit various beam widths and ranges easily. This adaptability allows them to be used with different beam sizes, providing versatility in their applications.
Lifting I-beams: Apart from suspending loads, these beam clamps are also suitable for lifting I-beams. This versatility makes them a valuable tool in various industrial and construction settings.
Easy installation and repositioning: The clamps are designed to be quick and easy to install and reposition. This feature is handy for maintenance tasks, allowing for efficient and swift adjustments during operations.
Industry-leading powder-coated finish: The crane beam clamps are coated with a high-quality powder finish, extending to the threads. This coating ensures smooth and free movement of the clamp's components, even after prolonged use, promoting longevity and reducing wear.

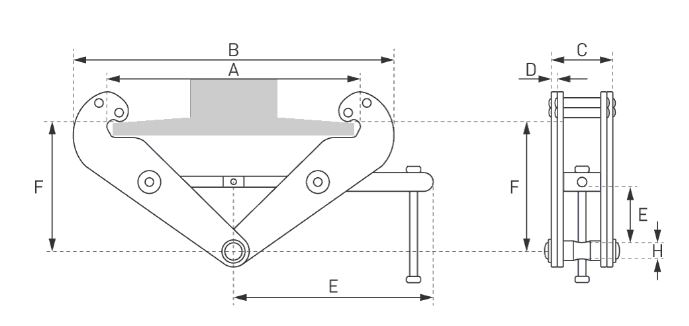

Model | CB01 | CB02 | CB03 |
Rated Capacity (kg W.L.L) | 1000kg | 2000kg | 3000kg |
Dimension A (max.) | 260mm | 260mm | 354mm |
Dimension B | 180-360mm | 180-360mm | 235-490mm |
Dimension C | 64mm | 74mm | 103mm |
Dimension D | 5mm | 6mm | 8mm |
Dimension E | 215mm | 215mm | 260mm |
Dimension F | 102 - 155mm | 102 - 155mm | 140 - 225mm |
Dimension G | 25mm | 25mm | 45mm |
Dimension H | 22mm | 22mm | 24mm |
Jaw Opening (mm) | 75 - 220 | 75 - 220 | 80 - 320 |
Net Weight | 4kg | 4.6kg | 9.1kg |
Overall, crane beam clamps are indispensable tools for safe and efficient material handling operations. Their capacity range, durable construction, easy adjustability, and industry-leading finish make them suitable for various lifting tasks in multiple industries and applications.
