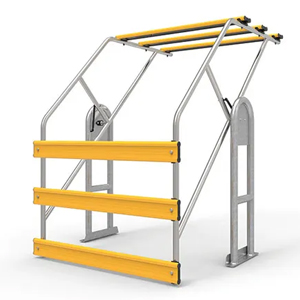

The Roll-Over Mezzanine Safety Gate provides controlled pallet access to mezzanine floors and loading areas, using a balanced pivoting design that keeps one side protected while the other side is open.
| Specification | Details |
|---|---|
| Operation: | Balanced pivoting design |
| Construction: | Aluminium frame and rails |
| Rail Size: | 145 x 40mm |
| Finish: | Powder-coated yellow rails |
| Gate Swing: | 45 degrees vertical |
| Mounting: | Surface mounted |
| Opening Height: | 2000mm |
| Supply: | Kit form; ground fixings not included |
| Specification | MZR1515 | MZR2615 |
|---|---|---|
| Overall Dimensions: | 1666 x 2400 x 2087mm | 2766 x 2400 x 2087mm |
| Rail Length: | 1500mm | 2600mm |
| Clear Opening: | 1355mm | 2455mm |
| Maximum Pallet Depth: | 1760mm | 1760mm |
| Floor to Top of Rail: | 990mm | 990mm |
| Weight: | 84.5kg | 101.5kg |
Note: Additional side barriers may be required where existing edge protection does not adequately enclose the gate area.

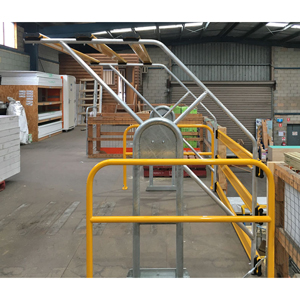

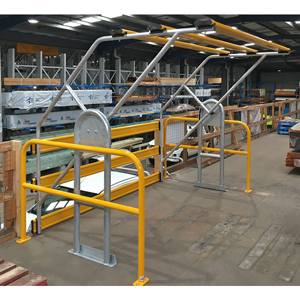

This mezzanine pallet gate is suited to warehouses, distribution centres and loading areas where pallets need to be transferred safely between floor levels while maintaining protected access at the mezzanine edge.
