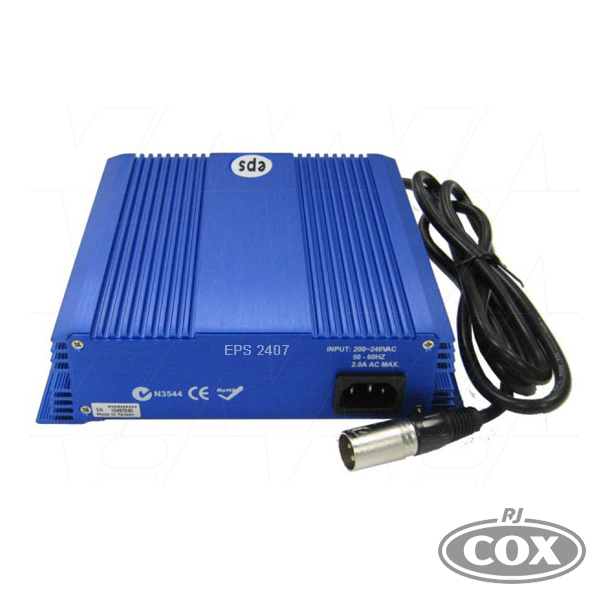

This 2407 Switch Mode Battery Charger is perfect for batteries in cyclic and standby applications. Compact, lightweight, and fully automatic, it ensures efficient charging with maximum safety. It is suitable for a wide range of automotive and industrial uses.
| Specification | Details |
|---|---|
| Mains Input Voltage: | 110-260VAC |
| Frequency: | 47-63Hz |
| Efficiency: | 85%-88% max |
| Boost Charge Voltage: | 29.4VDC |
| Float Charge Voltage: | 27.6VDC |
| Output Charge Current: | 7 amps |
| Max Battery Capacity: | 24V to 80% in 8 hours (60AH) |
| Ripple & Noise: | 150mV |
| Line Regulation: | +/- 0.5% over input range |
| Load Regulation: | +/- 1% (0-100% load) |
| Operating Temperature: | 0-40°C |
| Operating Humidity: | 10-90% RH |
| Case Dimensions (L x W x H): | 170mm x 207mm x 60mm |
| Weight: | 1.5kg |
| Warranty: | 12 months |
| Cooling: | Convection cooled |
| Safety Compliance: | CSA T-mark, IEC 950, AS 3193 |
| EMI-EMC Compliance: | FCC Class B, CE, C-Tick |
| Topology: | Switching DC power |
| Input Connection: | 3-core SAA cable IEC |
| Hold-up Time: | 20ms @ nominal output |
| Short Circuit Protection: | Output shutdown |
| Reverse Polarity Protection: | Internal relay 27.6VDC |
The 2407 Switch Mode Battery Charger is primarily designed for charging automotive and industrial batteries, providing maximum efficiency and extending battery life. It is ideal for use in environments where reliable, automatic charging is essential, such as vehicles, backup power systems, and machinery that rely on a 24V system.
