Powered Platform Trolley with Electric Scissor Lift

Price: AUD $7,016.90 (Ex GST AUD $6,379.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

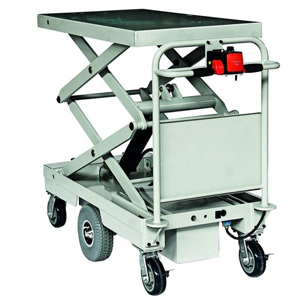

The UltiMate HG116 Powered Platform Trolley with Electric Scissor Lift 400kg combines powered travel and lifting to move loads and position them at working heights up to 1600mm.

Features of UltiMate HG116 Powered Platform Trolley:

Powered drive and lift reduce the manual effort required to transport and raise heavy loads.
Handle-mounted controls provide convenient operation of the electric travel and lifting functions.
Double-scissor mechanism raises the platform for loading, packing and elevated work-positioning tasks.
Central drive-wheel configuration supports manoeuvrability in confined work areas.
Built-in electromagnetic brake helps prevent the trolley from rolling away when stationary.
Braked rear castor provides additional stationary control during loading and unloading.
Large platform deck accommodates cartons, equipment and other suitable workplace loads.

Specifications for UltiMate HG116 Powered Platform Trolley:

Specification	Details
Code:	HG116
Capacity:	400kg
Overall Dimensions (L x W x H):	1340 x 600 x 1100mm
Deck Dimensions (L x W):	1000 x 600mm
Table Height Range:	460-1600mm
Lifting Motor:	800W
Drive Motor:	400W
Battery:	2 x 12V 33Ah
Lifting Time:	17sec
Charging Time:	8.5hr
Travel Speed:	5-8km/h forward and reverse
Controller:	70A
Maximum Pump Pressure:	20MPa
Maximum Working Temperature:	80°C
Working Noise:	40-50dB
Unit Weight:	234kg
Available Configuration:	Wheel-drive motor with six-wheel configuration

Ideal for warehouses, production areas, workshops and packing stations, this powered scissor lift trolley and electric platform cart transports cartons, components and equipment while raising loads to practical handling or racking heights.
