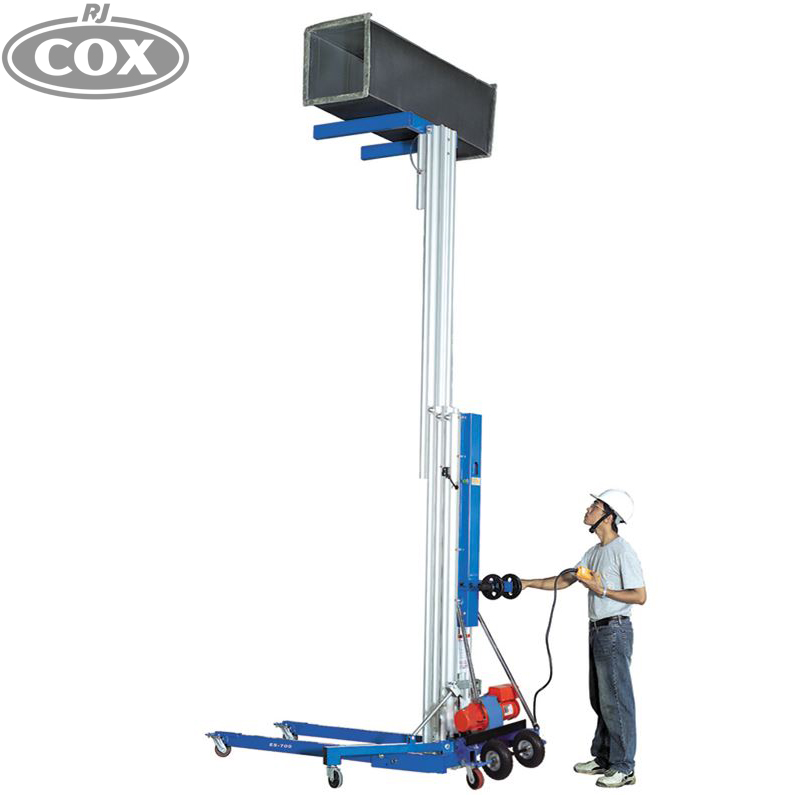

The Cargo Lifter ES/CS Heavy Series is a portable 300kg material lifter available with electric or manual operation, designed for HVAC, construction, maintenance and shop fitting applications.

Features of Cargo Lifter ES/CS Heavy Series:

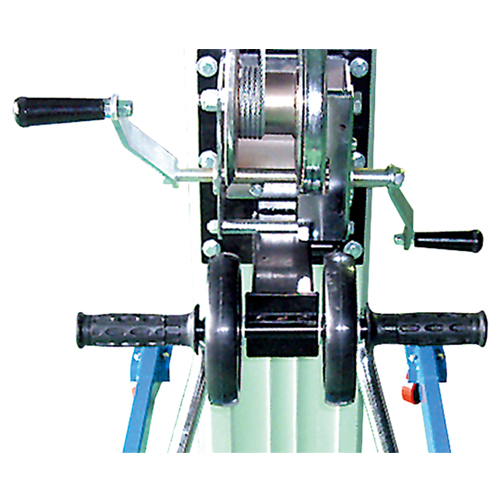

Electric or manual operation lets you choose an ES electric winch model or CS manual version to suit the worksite.
Robust mast with anti-fall protection provides stable lifting with added safety during operation.
Adjustable legs and built-in level help achieve a stable, level setup before lifting.
Guarded cable and pulleys help reduce exposure to pinch and crush points around the lifting mechanism.
Quick-folding design reduces the lifter footprint for easier transport and storage between jobs.
Highly manoeuvrable without counterweights makes positioning easier around HVAC, construction and maintenance work areas.

Specifications for Cargo Lifter ES/CS Heavy Series:

Specification	ES550 / CS550	ES700 / CS700
Basic Height:	2170mm	2170mm
Lifting Height (Forks Up):	5530mm	7160mm
Capacity at 385mm from Boom:	300kg	300kg
Capacity at 700mm from Boom:	250kg	200kg
Stowed Dimensions:	900 x 760mm	900 x 760mm
Operating Dimensions:	2160 x 1700mm	2160 x 1700mm
Machine Dimensions:	940 x 770 x 2240mm	940 x 770 x 2240mm
Weight:	ES: 198kg / CS: 166kg	ES: 219kg / CS: 187kg

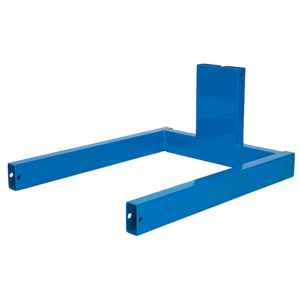

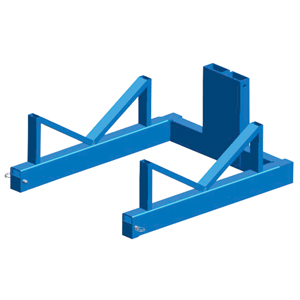

Fork Specifications:

Specification	Standard Forks	Pipe Fork	Extension Forks
Supply:	Standard with lifter	Optional	Optional
Load Capacity:	300kg	300kg	-
Dimensions:	600 x 700 x 355mm	600 x 700 x 355mm	1405 x 577 x 341mm
Weight:	14kg	16kg	-

These portable material lifters are suited to HVAC, air conditioning, electrical, construction, facilities maintenance and shop fitting work where heavy equipment needs to be raised accurately to height.
