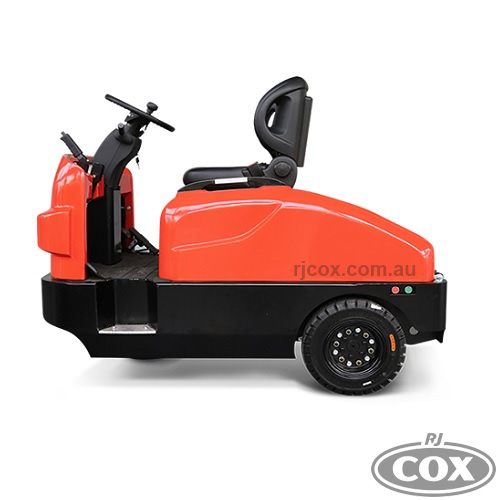

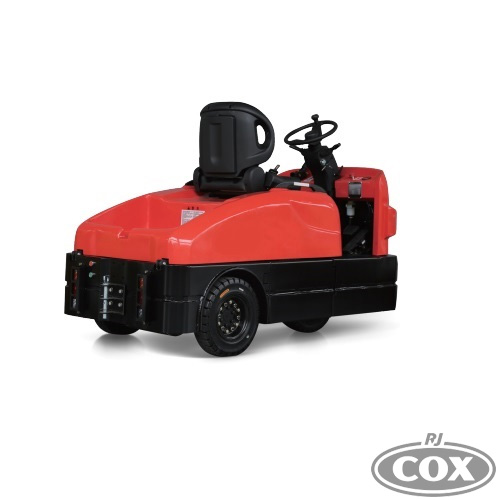

The QDD60 Electric Tow Tractor can tow up to six tons. Its straightforward design and enhanced usability make it ideal for supporting your workforce and reducing back injuries. This electric tractor is a powerful yet simple tool for towing trolleys around your warehouse, production, or logistics centre.
AC Controller:
Operability & Safety:

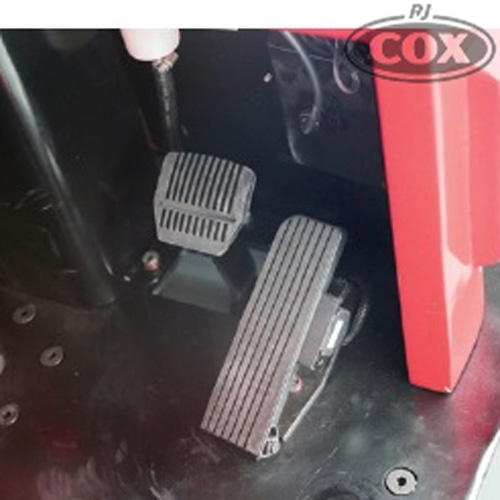

Brake

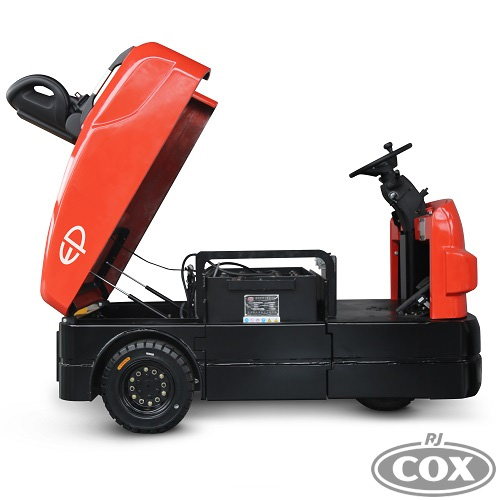

Maintenance
Rated Capacity: | 6000kg |
Wheelbase: | 1110mm |
Service Weight (includes battery): | 1150kg |
Tyre Type Driving/Load Wheels: | Solid Rubber |
Track width, rear, loading side: | 820mm |
Height Overhead Guard (cabin): | 1320mm |
Seat Height: | 947mm |
Tow Coupling Height: | 361(221/291/431)mm |
Rear Overhang: | 471mm |
Loading Platform Width: | 700mm |
Overall Length: | 1966mm |
Overall Width: | 1010/990mm |
Outer Turning Radius: | 677mm |
Inner Turning Radius: | 677mm |
Ground Clearance, Centre of wheelbase: | 150mm |
Travel Speed, Lade / Unladen: | 7/17 km/h |
Max Drawbar Pull, Laden/ Unladen S2 5min.: | 4500N |
Max Gradeability, Laden / Unladen S2 5min.: | 5/20% |
Service brake: | hydraulic/ mechanical |
Mileage Covered by a Single Charge: | 60km |
Drive Motor Rating S2 60min.: | 6kw |
Battery: | 48/275 V/Ah |
Battery Weight: | 506kg |
