The Bishamon Manual Mobile Scissor Lift Tables combine heavy-duty construction, reliable hydraulic lifting and smooth mobility for ergonomic load positioning in workshops, warehouses and industrial handling applications.
Features of Bishamon Manual Mobile Scissor Lift Tables:
- Heavy-duty scissor construction features captured scissor rollers for stable lifting and dependable industrial performance.
- Integrated hydraulic pump and cylinder provide reliable manual lifting for repeated material-handling tasks.
- Ergonomic push handle incorporates a convenient lowering control for controlled load positioning.
- Automatic-stop lowering control stops lowering when the control is released for added operational safety.
- Two fixed and two swivel castors provide smooth manoeuvring around workshops, warehouses and production areas.
- Rear castor brake helps secure the lift table during loading and unloading.
- Maintenance scissor lock pin provides additional support during servicing and maintenance procedures.
- Durable powder-coated finish helps protect the lift table during demanding industrial use.

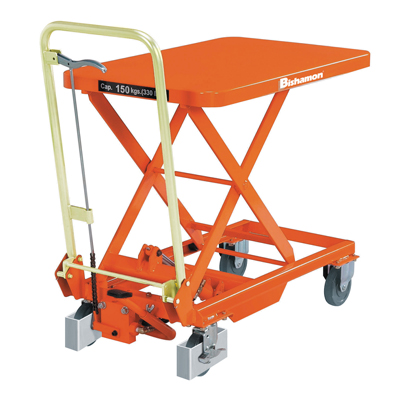

- Fixed push handles are fitted across the range, except the BX-15, which features a folding handle.
- Stainless steel models are also available for applications requiring an alternative construction.
Specifications For Bishamon Manual Mobile Lift Tables:
| Type |
Model: |
Capacity:
(kg)
|
Platform Size:
(mm)
|
Platform Height:
Min-Max (mm)
|
Overall Dimensions:
(mm)
|
Strokes to
Max. Height:
|
Wheel: |
Weight
(kg)
|
|
Diameter
(mm)
|
Material |
|
X-Type
SINGLE
|
BX-15 |
150 |
700 x 450 |
213-750 |
853 x 450 x 796 |
15 |
100 dia |
Rubber |
33 |
| BX-30 |
300 |
815 x 500 |
288-880 |
1008 x 500 x 896 |
25 |
69 |
| BX-5 |
50 |
1010 x 520 |
438-1020 |
1191 x 520 x 900 |
50 |
150 dia |
Polyurethane |
112 |
| BX-80 |
800 |
1258 x 520 x 960 |
65 |
115 |
|
2X-Type
DOUBLE
|
BX-15W |
150 |
815 x 500 |
380-1350 |
1000 x 500 x 900 |
29 |
100 dia |
Rubber |
92 |

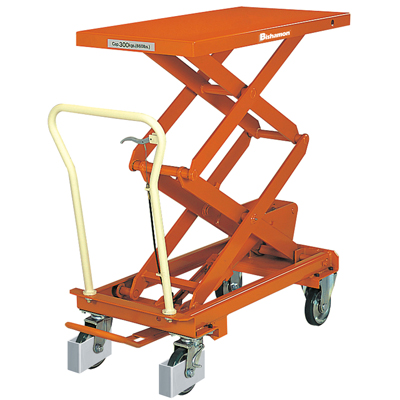

| BX-30W |
300 |
1010 x 520 |
433-1600 |
1270 x 520 x 960 |
65 |
150 dia |
Polyurethane |
138 |
| BX-50S |
500 |
650 x 460 |
418-120 |
944 x 460 x 939 |
70 |
125 dia |
102 |
| BS-50W |
500 |
1010 x 520 |
433-1600 |
1270 x 520 x 960 |
90 |
150 dia |
151 |
