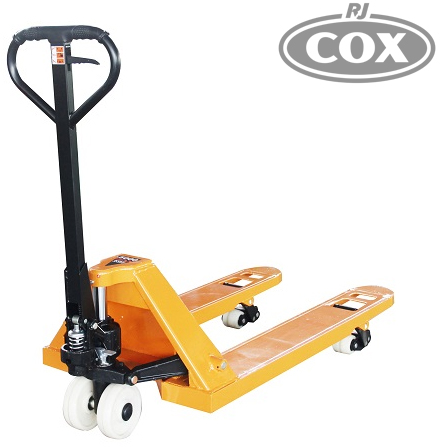

Heavy-Duty 5000kg / 5 Tonne Pallet Trucks are built for moving heavy machinery, transformers and industrial loads. Available in standard and narrow fork widths, both models feature reinforced forks, nylon wheels and a high-visibility safety yellow finish.
Features of Heavy-Duty 5000kg / 5 Tonne Pallet Trucks MHP50L / MHP50S:
- Heavy-duty reinforced forks are designed for demanding industrial applications and heavy palletised loads.
- Nylon wheels provide durable rolling performance for regular warehouse and industrial use.
- Back hooks for towing allow the pallet truck to be attached to a jack for towing applications.
- Safety yellow powder-coated finish improves visibility in busy workplaces.
- Protective powder coating helps reduce surface wear and tear during regular use.
- Standard and narrow models are available to suit different pallet sizes and access requirements.
- Standard MHP50L model provides an overall fork width of 685mm.
- Narrow MHP50S model provides an overall fork width of 540mm for tighter handling areas.
- Suitable for heavy industrial handling including manufacturing, wholesale, building sites, transformer movement and heavy machinery handling.
- Handle supplied unattached for transport as the pallet trucks are shipped without the handle fitted.
Specifications for Heavy-Duty 5000kg / 5 Tonne Pallet Trucks MHP50L / MHP50S:
| Specification | MHP50L - Standard | MHP50S - Narrow |
| Capacity: |
5000kg / 5 Tonne |
5000kg / 5 Tonne |
| Minimum Fork Height: |
90mm |
90mm |
| Maximum Fork Height: |
200mm |
200mm |
| Fork Width: |
180mm |
180mm |
| Overall Fork Width: |
685mm |
540mm |
| Fork Length: |
1150mm |
1150mm |
| Overall Dimensions (L x W x H): |
1546 x 688 x 1300mm |
1546 x 548 x 1300mm |
| Load Roller (Dia. x W): |
80 x 68mm |
80 x 68mm |
| Steering Wheel (Dia. x W): |
200 x 50mm |
200 x 50mm |
| Net Weight: |
198kg |
192kg |
These extra heavy-duty pallet jacks are suited to manufacturing plants, warehouses, wholesale operations, building sites and heavy equipment handling. They can also be used as 5 tonne pallet trucks, heavy-duty pallet movers or industrial pallet jacks.
