Hoisting Tipping Yoke for Steel Drums 350kg / 500kg CP205 / HDCP205

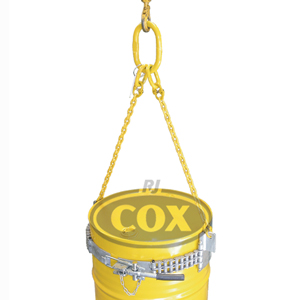

Hoisting Tipping Yoke for Steel Drums is a crane attachment designed to safely lift, rotate and tip steel drums with two equally spaced chimes. Available in 350kg and 500kg models, it provides controlled drum handling for industrial and construction applications.

Features of Hoisting Tipping Yoke for Steel Drums CP205 / HDCP205:

• Safe lifting and tipping allows steel drums to be raised, rotated and emptied with improved control.
• Designed for steel drums with two equally spaced chimes along the drum length.
• Suitable for drums with reinforcing rings or ribs commonly used in industrial drum construction.
• Over-centre clamp mechanism securely grips the drum during lifting and tipping to help prevent unwanted movement.
• 360-degree drum rotation allows controlled pouring or emptying from a wide range of positions.
• Heavy-duty worm drive gearbox resists accidental drum rotation and helps maintain control during tipping.
• Forklift pockets assist with handling the yoke when attaching or removing it from the crane hook.
• Modified extended-length yoke option is available to provide additional clearance for accessories such as a Convert-A-Cone with spigot or flow control valve.
• Standard-duty and heavy-duty models are available to suit different drum handling requirements.

Specifications for Hoisting Tipping Yoke for Steel Drums CP205 / HDCP205:

Additional Specifications:

This crane drum lifting attachment is suited to industrial plants, construction sites and material handling operations where steel drums need to be lifted, rotated, tipped or emptied. It can also be used as a crane drum tilter, drum lifting yoke or drum tipping attachment.
