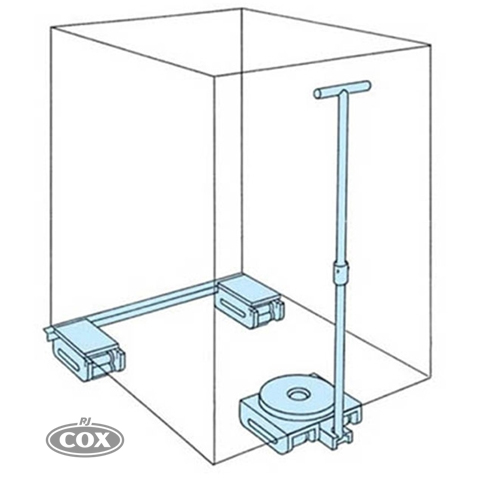

If you need to move heavy machinery or equipment over short distances, consider using Heavy-Duty Load Skate Kits. Available in three models with capacities of 20, 30, and 60 tonnes, these kits are ideal for installing, moving, or working on heavy loads.
Features of Heavy-Duty Load Skate Kits:
- Designed for installing, moving, or working on heavy loads.
- Safe, easy to use, and economical.
- Precise control when used with a steering handle.
- Minimum turning circle of 3m.
- Maximum moving speed of 5m/min.
- Supplied in a wheeled storage container.
- NB: Kits are supplied in Yellow (not blue).
Important Information:
- All maximum carrying capacities are based on a surface that can withstand the chain roller's pressure.
- Carrying capacities are calculated so that 2 Roller Skates can support the entire load on uneven surfaces.
- The track surface, not the Roller Skate's carrying capacity, is critical for safe transportation. Tiles are unsuitable; movement on tarmac and concrete is restricted. In these cases, a steel plate at least 10mm thick is recommended.
- Take precautionary measures when using on inclined surfaces because the low effort required to overcome rolling resistance (4-7% of the total load) can be dangerous.

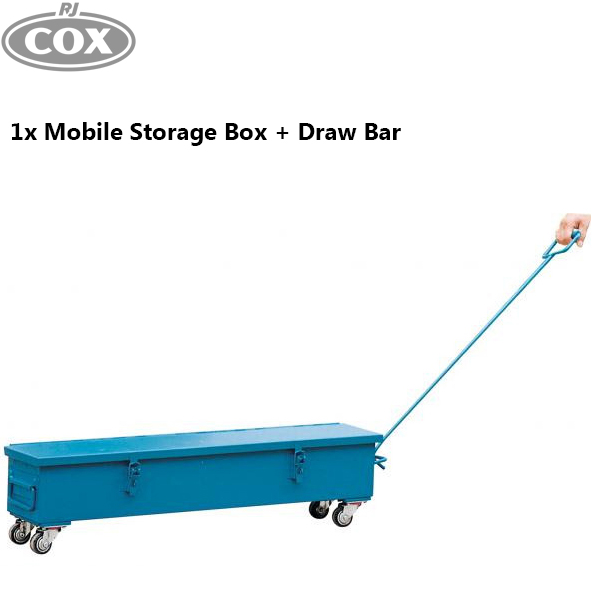

The Heavy-Duty Roller Skate Kits include four roller skates, two turntables, two packing plates, two steering handles, two link-up bars, one draw bar, and one metal box.
Specification for Heavy-Duty Load Skate Kits:
| Model # | Capacity (Tonne) | Length Support (mm) | Width Support (mm) | Total Height (mm) | Roller Diameter (mm) | Swivel Top (mm) | Weight of set (kg) |
|---|
| LSR003 |
20 |
120 |
120 |
108 |
18 dia |
130 dia |
50 |
| LSR005 |
30 |
120 |
120 |
117 |
24 dia |
130 dia |
58 |
| LSR006 |
60 |
130 |
130 |
140 |
30 dia |
150 dia |
92 |
