Hydralift 150 Skip-Mounted Bin Lifter 150kg

Price: AUD $10,560.00 (Ex GST AUD $9,600.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

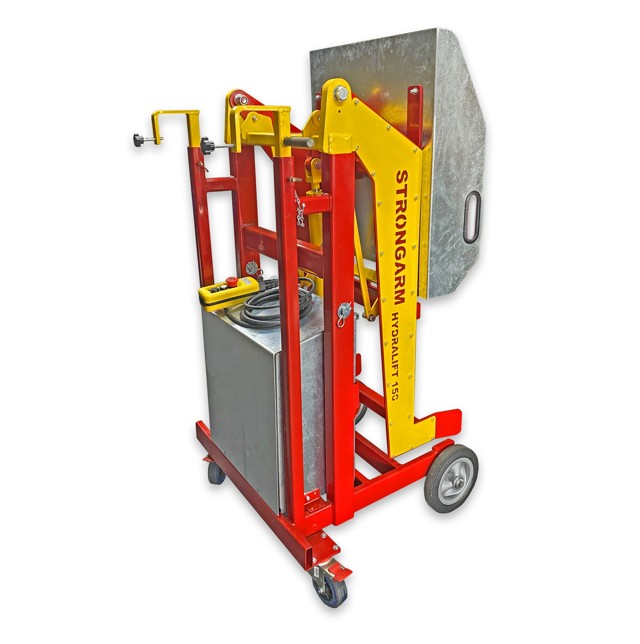

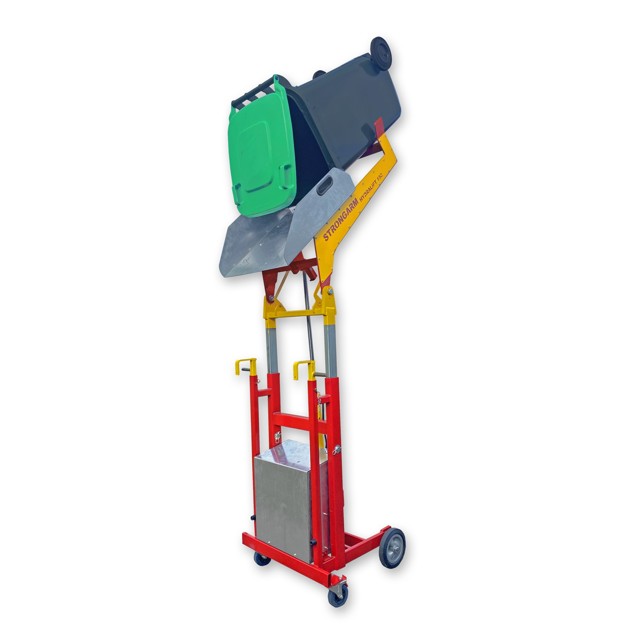

The Strongarm Hydralift 150 Skip-Mounted Bin Lifter is an Australian-made 150kg wheelie bin lifter for 120, 140 and 240 Litre bins, designed to lift and tip non-hazardous waste into compatible skips.

Features of Strongarm Hydralift 150 Skip-Mounted Bin Lifter:

Australian-made construction continues a long-standing Australian bin lifter design, re-engineered for current OHS requirements and industrial environments.
Powered lifting and tipping reduces manual handling when emptying compatible wheelie bins into a skip.
Automated bin-catch system removes the need for manual latching during operation.
Telescopic mast design provides improved visibility around the bin lifter during use.
Hold-to-run pendant control allows the operator to control raising and lowering from outside the exclusion zone, with an emergency stop for added safety.
Hydraulic safety controls include a hose-burst valve, relief valve and flow control to support controlled lifting and descent.
Skip-mounted operation secures the lifter to a compatible skip before use and is designed for operation on flat, firm ground.

Specifications for Strongarm Hydralift 150 Skip-Mounted Bin Lifter:

Specification	Details
Model:	Hydralift 150
Safe Working Load (SWL):	150kg
Compatible Bin Sizes:	120, 140 and 240 Litre wheelie bins
Intended Contents:	Non-hazardous waste
Skip Lip Thickness:	30–80mm
Skip Lip Height:	1200–1800mm
Lowered Height:	1549mm
Overall Width:	830mm
Tip Height:	3539mm including a 240 Litre bin
Swing Radius:	1812mm including a 240 Litre bin
Cycle Time:	25–30 seconds
Power Options:	12VDC battery or 240VAC electric
Control System:	Low-voltage wired hold-to-run Up/Down pendant with emergency stop
Pendant Lead Length:	3m
Operator Exclusion Zone:	3m
Hydraulic System:	Single-acting cylinder, hose-burst valve, relief valve and flow control
Operating Surface:	Flat, firm ground with the lifter securely attached to a stationary, structurally sound skip
Compliance:	Complies with AS 4024 Safety of Machinery and relevant hydraulic and electrical safety requirements
Warranty:	12 months against defects; exclusions apply
Manufacture:	Australian made

Manufacturer Wheelie Bin Weight Limits

Specification	Details
120 Litre Wheelie Bin:	48–70kg
140 Litre Wheelie Bin:	60–80kg
240 Litre Wheelie Bin:	96–110kg
Bin SWL Requirement:	Check each bin's Safe Working Load and avoid overloading

The Strongarm Hydralift 150 is designed as a skip-mounted bin lifter/bin tipper for councils, schools, waste contractors and industrial sites handling standard wheelie bins with non-hazardous waste. It provides a powered wheelie bin lifting solution for compatible skip-bin applications.
