Magliner STRAIGHT Back FOLDING Extruded Nose Microcellular Wheels Hand Truck

Price: AUD $924.00 (Ex GST AUD $840.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Magliner Straight Back Folding Nose Hand Truck is a lightweight, high-strength aluminium hand truck with a 225kg capacity, folding extruded nose plate and microcellular wheels, built from 6000 series alloy for a high strength-to-weight ratio.

Features of Magliner Straight Back Folding Nose Hand Truck:

Rigid aluminium construction uses a high-strength channel frame designed to keep the hand truck lightweight while maintaining structural rigidity.
6000 series alloy provides a high strength-to-weight ratio for demanding materials handling applications.
Tapered extruded nose plate features a leading edge designed for easier loading while maintaining maximum strength-to-weight ratio.

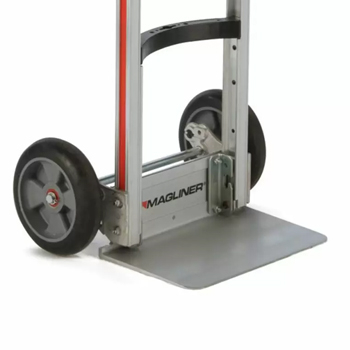

Folding nose kit allows the nose plate to fold flush against the frame when not in use for easier handling and storage.
Microcellular foam wheels feature an offset hub that provides greater clearance between the wheels and the hand truck.
Semi-precision wheel bearings support smooth wheel operation during everyday trolley use.
One-piece HDPE wheel hubs resist chemicals, weather and side impact.
Multiple handle configurations are available to suit different handling preferences and applications.
Made in the USA as part of the Magliner modular hand truck range.

Specifications for Magliner Straight Back Folding Nose Hand Truck:

Specification	Details
Capacity:	225kg
Frame Material:	6000 series aluminium alloy
Frame Type:	39in straight back frame
Cross-Braces:	1-1/4in
Nose Plate:	Extruded aluminium G1 recessed-mount nose plate
Nose Plate Size:	18 x 7-1/2in / 455 x 190mm
Nose Plate Design:	Tapered profile and leading edge
Folding Nose:	Folds flush against the frame when not in use
Wheels:	Microcellular foam wheels with offset hubs
Wheel Bearings:	Semi-precision
Wheel Hub:	One-piece HDPE hub resistant to chemicals, weather and side impact
Country of Manufacture:	USA

Magliner Hand Truck Models and Handle Options:

Order Code	Handle Type
130G11080-F	Welded Double Pistol Grip - No. 30
111G11080-F	Standard U - No.11
115AG11080-F	52in Vertical Loop - No.15A
115CG11080-F	60in Vertical Loop - No.15C
116G110800-F	Bolted Pistol Grip - No. 16
122G11080-F	Standard U with Vinyl Sleeve & Brace - No. 22
118G11080-F	Angled Loop - No.18; adds 3in
40011	Hi-U Frame Extension 68in - for use with No.11, No.16 & No.22 handles

Modular Design Note: Magliner trolleys use a modular design. Please contact the office for pricing if the required trolley configuration is not listed on the website.

This Magliner hand truck is suited to warehouses, delivery operations, transport, retail and general materials handling where a lightweight aluminium trolley with a folding nose is preferred. It can also be used as a sack truck, two-wheel trolley or folding-nose hand trolley.
