YALE MTRAC YMT 3-5 300kg 230V Endless Winch

YALE MTRAC YMT 3-5 300kg 230V Endless Winch

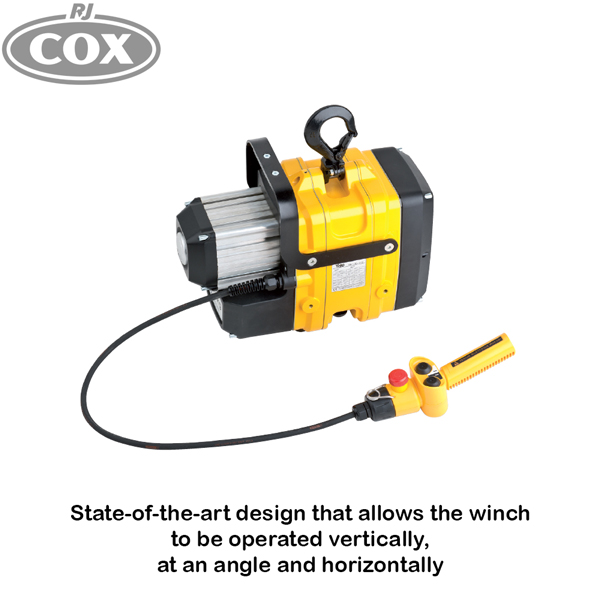

The Yale Mtrac YMT 3-5 Endless Winch is a versatile 230V lifting winch for vertical, horizontal or angled operation, with a 300kg single-reeved capacity and supplied 10m galvanised steel rope.

Features of Yale Mtrac YMT 3-5 Endless Winch:

  • Multi-position operation allows the winch to work vertically, horizontally or at an angle for flexible lifting applications.
  • Flexible lifting capacity handles 66kg to 300kg single-reeved, or up to 600kg with a two-part reeved configuration.
  • IP65 pendant control provides protected remote operation through the connected control cable.
  • 42V low-voltage control supports safer operation of the pendant controls.
  • Supplied steel rope includes a safety hook at one end and rounded plastic tip at the loose end.
  • Ergonomic carry handle with plastic grip makes the winch easier to handle and reposition.

Specifications for Yale Mtrac YMT 3-5 Endless Winch:

SpecificationDetails
Item Code: 192025170
Model: YMT 3-5
Voltage: 230V
Single-Reeved Capacity: 66kg to 300kg
Two-Part Reeved Capacity: Up to 600kg
Steel Rope: 10m galvanised high-density steel rope
Rope Diameter: 6.5mm
Pendant Enclosure: IP65
Control Voltage: 42V
Power Cable: 1m with CE connector plug or Schuko plug
Operating Orientation: Vertical, horizontal or angled

This electric endless winch is suited to lifting and pulling applications where flexible operating orientation is required, including workshops, construction, maintenance and industrial handling tasks.
