Fallshaw Big M Series Castors - 175mm Grey Rubber wheel

Price: AUD $36.47 (Ex GST AUD $33.15)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw Big M Series QTQ175G Castors feature 175mm grey energy-absorbent rubber wheels with threadguards and a 200kg load rating. Designed for medium-duty applications with durable zinc-plated M Series forks.

Features of Fallshaw Big M Series QTQ175G Castors:

175mm grey rubber wheel provides energy-absorbent performance.
Round-profile wheel supports smooth rolling.
Threadguard helps reduce thread and debris wrapping around the axle.
Zinc-plated CoreCoat forks provide enhanced corrosion protection.
150mm and 175mm wheel sizes are available in the Big M Series.
North American base plate option is available on request.
Australian Made.

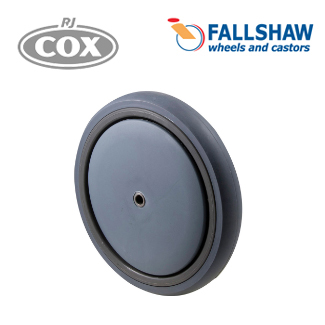

Specifications for Fallshaw QTQ175G Wheel:

Specification	Details
Diameter:	175mm
Tread:	34mm
Hub:	40mm
Bore:	8mm
Bearing:	Precision ball bearing
Material:	Grey energy-absorbent elastomer

Castor Configurations for Fallshaw QTQ175G:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
QTQ175G	175mm dia Wheel	175mm	200kg	214mm	-
QTQ175G/MZP	Swivel Plate				145mm

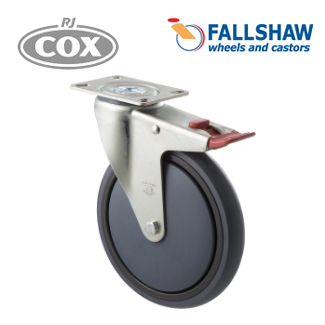

QTQ175G/MZPTB	Swivel Plate Total Brake				153mm

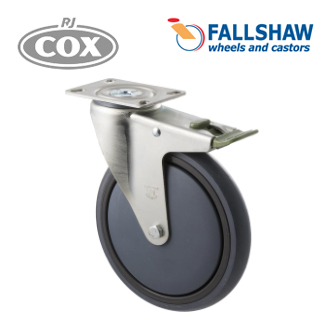

QTQ750G/MZPDL	Swivel Plate Direction Lock				153mm
QTQ175G/MZFN	Fixed Plate - NA Base Plate				-
QTQ175G/MZH	Bolt Hole				145mm
QTQ175G/MZHTB	Bolt Hole & Total Brake				153mm

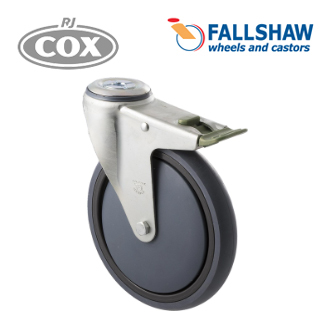

QTQ175G/MZHDL	Bolt Hole & Direction Lock				153mm

Fallshaw Big M Series castor mounting dimensions
