Fallshaw O Stainless Castors - 100mm PU on Nylon Wheel
Fallshaw O Stainless Castors - 100mm PU on Nylon Wheel
Price: AUD $47.58 (Ex GST AUD $43.25)
Enter your delivery location for a shipping quote...

The Fallshaw O-Series 100mm Stainless Steel Castor combines a polyurethane-on-nylon wheel with corrosion-resistant 304 stainless steel components for heavy-duty industrial, commercial and material handling applications.

Features of Fallshaw O-Series 100mm Stainless Steel Castor HUS100:Fallshaw O-Series castor mounting dimensions

  • 304 stainless steel fork construction provides corrosion resistance for demanding commercial and industrial environments.
  • Polyurethane-on-nylon wheel combines a durable polyurethane tread with a strong nylon wheel centre.
  • Stainless steel roller bearing supports reliable wheel performance in heavy-duty applications.
  • Precision stainless steel components include type 304 fork, ball bearings, axle, bolt and nut, with type 303 rivet, axle bush and reducing bush.
  • Chicago screw axle uses type 304 stainless steel construction as standard.
  • ISO and North American base plate options provide mounting flexibility for different equipment requirements.
  • Australian-made construction provides a robust castor solution manufactured by Fallshaw.

Specifications for Fallshaw O-Series 100mm Stainless Steel Castor HUS100:

SpecificationDetails
Brand: Fallshaw
Wheel Diameter: 100mm
Tread Width: 40mm
Hub: 60mm
Bore: 20mm without bush
Reducing Bush: 12.7mm
Wheel Material: Polyurethane on nylon
Bearing: Stainless steel roller bearing
Fork Material: 304 stainless steel
Maximum Load: 300kg
Mount Height: 138mm
Base Plate Options: ISO standard or NA North American
Country of Manufacture: Australia

Available Fallshaw O-Series 100mm Castor Models:

Castor CodeDescriptionWheel DiameterMax LoadMount HeightTurning Radius
HUS100 100mm diameter wheel 100mm 300kg 138mm -

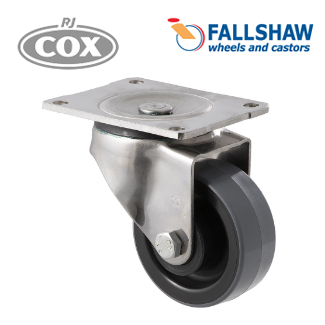

HUS100/OSP Swivel plate 100mm 300kg 138mm 96mm
HUS100/HSF Fixed plate 100mm 300kg 138mm -
HUS100/OSPTB Swivel plate total brake 100mm 300kg 138mm 140mm

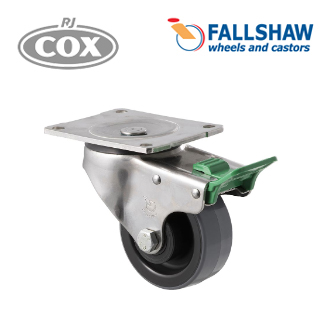

HUS100/OSPDL Swivel plate direction lock 100mm 300kg 138mm 140mm
NA Option: Add N for North American base plate.

These heavy-duty stainless steel castors are suited to industrial trolleys, carts, machinery and material handling equipment requiring corrosion-resistant construction, polyurethane wheels and fixed, swivel, total-brake or direction-lock configurations.
