Fallshaw O Stainless Castors with 150mm Poly on Nylon Wheels
Fallshaw O Stainless Castors with 150mm Poly on Nylon Wheels
Price: AUD $51.76 (Ex GST AUD $47.05)
Enter your delivery location for a shipping quote...

The Fallshaw O-Series 150mm Stainless Steel Castor combines a polyurethane-on-nylon wheel with corrosion-resistant stainless steel components for heavy-duty industrial, commercial and material handling applications.

Features of Fallshaw O-Series 150mm Stainless Steel Castor:Fallshaw O-Series castor mounting dimensions

  • 304 stainless steel fork construction provides corrosion resistance for demanding industrial and commercial environments.
  • Polyurethane-on-nylon wheel combines a durable polyurethane tread with a strong nylon wheel centre.
  • Stainless steel roller bearing supports reliable wheel performance under heavy-duty loads.
  • Precision stainless steel components include type 304 fork, ball bearings, axle, bolt and nut, with type 303 rivet, axle bush and reducing bush.
  • Chicago screw axle uses type 304 stainless steel construction as standard.
  • ISO and North American base plate options provide flexibility for different mounting requirements.
  • Australian-made construction provides a robust castor solution manufactured by Fallshaw.

Specifications for Fallshaw O-Series 150mm Stainless Steel Castor HUS150:

SpecificationDetails
Brand: Fallshaw
Wheel Diameter: 150mm
Tread Width: 40mm
Hub: 60mm
Bore: 20mm without bush
Reducing Bush: 12.7mm
Wheel Material: Polyurethane on nylon
Bearing: Stainless steel roller bearing
Fork Material: 304 stainless steel
Maximum Load: 450kg
Mount Height: 189mm
Base Plate Options: ISO standard or NA North American
Country of Manufacture: Australia

Available Fallshaw O-Series 150mm Castor Models:

Castor CodeDescriptionWheel DiameterMax LoadMount HeightTurning Radius

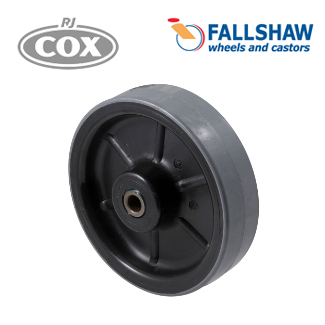

HUS150 150mm diameter wheel 150mm 450kg 189mm -
HUS150/OSP Swivel plate 150mm 450kg 189mm 121mm
HUS150/HSF Fixed plate 150mm 450kg 189mm -

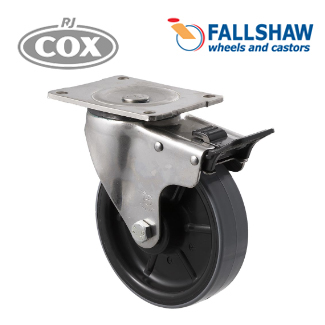

HUS150/OSPTB Swivel plate total brake 150mm 450kg 189mm 140mm

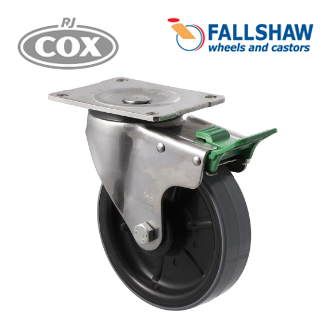

HUS150/OSPDL Swivel plate direction lock 150mm 450kg 189mm 140mm
NA Option: Add N for North American base plate.

These heavy-duty stainless steel castors are suited to industrial trolleys, carts, equipment and material handling applications requiring corrosion-resistant construction, polyurethane wheels and fixed, swivel, brake or direction-lock configurations.
