Bailey FS13999 Adjustable Height Platform Step Ladder combines four platform ladder heights in one, converting between 3, 4, 5 and 6 steps with independently adjustable rear legs for stairs and slight slopes.
Features of Bailey FS13999 Adjustable Height Platform Step Ladder:
- Four platform heights in one allow the ladder to convert between 3, 4, 5 and 6-step configurations.
- Single-handed self-locking mechanism allows quick and easy platform height adjustment.

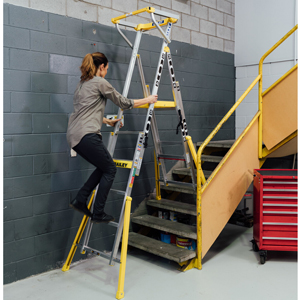

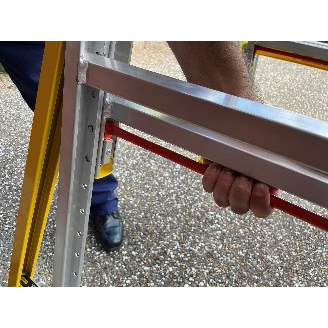

- Independently adjustable rear legs move in 49mm increments to help level the ladder on stairways or slight slopes.

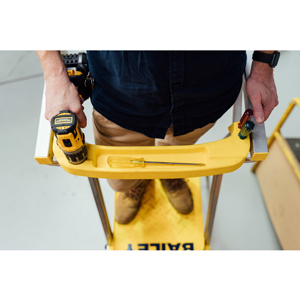

- Multi-functional handrail provides convenient access to tools while working.
- Outriggers provide additional stability and lock permanently into position once pulled out before first use.
- Lightweight aluminium construction weighs approximately 18.8kg for easier handling and transport.
- Height indicators on the ladder stiles assist when selecting the required platform configuration.

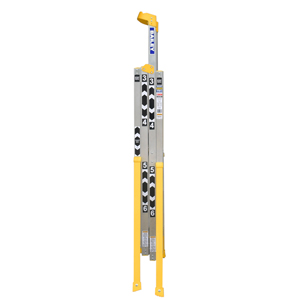

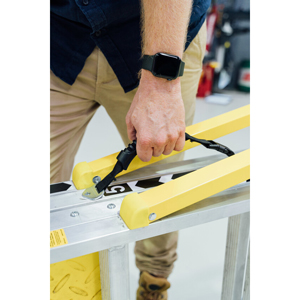

- Integrated carry handle helps keep the ladder closed during transport.
- Large 420 x 500mm platform provides a generous standing area.
- Anti-slip PVC boots improve grip and stability at the base.
- 170kg industrial load rating suits professional and industrial applications.
- Manufactured to AS 1892 for Australian ladder applications.
- Optional FS13952 Safety Gate is compatible with the pre-drilled Ready-Fit mounting points and is sold separately.
Specifications for Bailey FS13999 Adjustable Platform Step Ladder:
| Specification | Details |
|---|
| Model: |
FS13999 |
| Material: |
Aluminium |
| Load Rating: |
170kg |
| Platform Dimensions: |
420 x 500mm |
| Product Width: |
Approx. 900mm |
| Product Height: |
Approx. 1758-2614mm |
| Product Depth: |
Approx. 1037-1544mm |
| Unit Weight: |
Approx. 18.8kg |
| Fully Open Dimensions: |
2614 x 903 x 1544mm |
| Rear Leg Adjustment: |
49mm increments |
| Standard: |
AS 1892 |
| Optional Safety Gate: |
FS13952 - sold separately |
Adjustable Platform Heights for Bailey FS13999:
| Steps | Nominal Size | Platform Height | Reach Height |
|---|

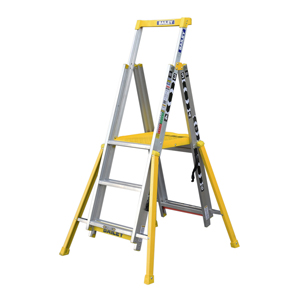

| 3 Step |
1860mm |
856mm |
2856mm |

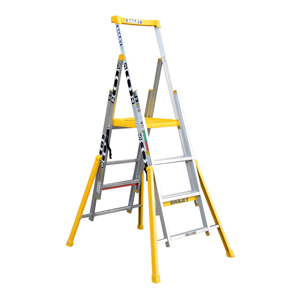

| 4 Step |
2160mm |
1142mm |
3142mm |

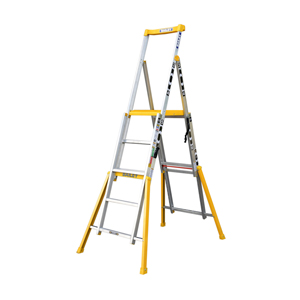

| 5 Step |
2460mm |
1427mm |
3427mm |

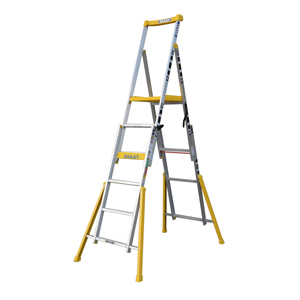

| 6 Step |
2760mm |
1712mm |
3712mm |
Reach height is based on a 1.7m person with a 30cm vertical reach.
The Bailey FS13999 adjustable platform ladder suits warehouses, workshops, maintenance areas and industrial sites where multiple working heights or uneven surfaces such as stairs and slight slopes are encountered.
View Bailey FS13999 product video
