Powered Pallet Tilters

Powered Pallet Tilters provide controlled load positioning for safer, more ergonomic materials handling. Available in 30° and 90° models, they suit pallets, stillages, bins, crates, coils and other heavy loads in production and warehouse environments.

Features of Powered Pallet Tilters:

Controlled powered tilting positions heavy loads at a practical working angle to improve operator access and reduce manual handling.
Versatile load handling makes the range suitable for pallets, bins, crates, stillages, plastic film, paper rolls, steel coils and other bulky materials.
Ergonomic work positioning helps present components and materials closer to the operator for assembly, picking and production tasks.
Standalone or lift table integration allows the tilting deck to be used independently or combined with vertical lift adjustment for greater flexibility.
Optional platform configurations include V-shaped cradles, roll supports and gravity roller decks for specialised handling applications.
Durable industrial construction is designed for regular materials handling in warehouses, production facilities and cold storage environments.
Safety bars are supplied as standard to support safer operation during the tilting cycle.
Customisable configurations can accommodate application-specific requirements, with models available for loads up to 2000kg / 2 Tonne and tilt angles up to 90°.

Specifications for Powered Pallet Tilters:

Specification	Details
Available Tilt Angles:	30° and 90°
Maximum Capacity:	2000kg / 2 Tonne
Available Capacities:	1000kg and 2000kg / 2 Tonne
Installation Configuration:	Standalone tilter or tilting deck mounted to a lift table
Platform Options:	Standard deck, V-deck, multi-roll V-deck and roller platform
Safety:	Safety bars supplied as standard

Available Powered Pallet Tilter Models:

Order Code	Capacity	Tilt	Platform Height	Platform Size	Cycle Time	Power Unit
AT2-30	2000kg / 2 Tonne	30°	200mm	1300 x 1200mm	21sec	0.75kW, 240V single-phase
AT1-90	1000kg	90°	450mm	1200 x 1200mm	22sec	2.4kW, 415V 3-phase
AT2-90	2000kg / 2 Tonne	90°	450mm	1200 x 1200mm	29sec	2.4kW, 415V 3-phase

Options for Powered Pallet Tilters:

Order Code	Description
V-DECK	V-deck for supporting roll tilting up to 1200mm diameter
V-DECK4	V-deck with side support for four smaller rolls up to 600mm diameter each

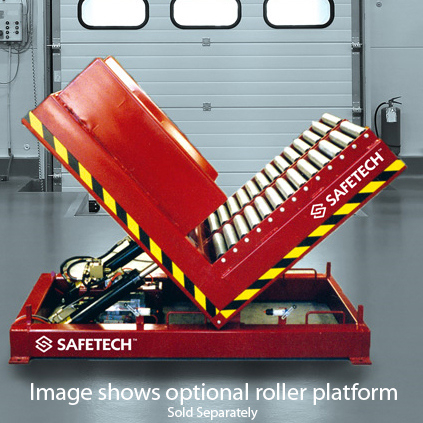

TILTRP	Optional roller platform with 1750 series rollers

Powered tilting tables are suited to parts assembly, bin picking, pallet positioning, roll and coil handling, crate and stillage access, cold store dunnage removal, production line load orientation and controlled tilting of liquid containers towards an outlet.

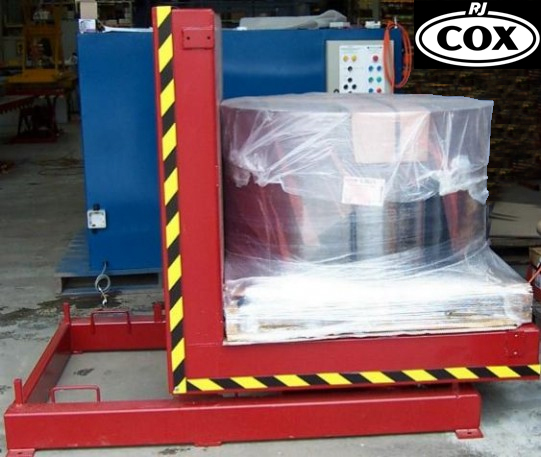

Powered pallet tilter for ergonomic industrial load positioning

Price on Application - Please contact RJ Cox for pricing and freight.
