Bishamon EZ Loader

The Bishamon EZ Loader Pneumatic Pallet Positioner automatically raises and lowers palletised loads using air pressure, helping maintain a practical working height while the rotating platform reduces reaching during loading and unloading.

Features of the Bishamon EZ Loader Pneumatic Pallet Positioner:

• Self-levelling pneumatic operation automatically adjusts the load height as items are added or removed, helping reduce bending during pallet handling.
• Integral rotating platform allows the load to be turned for near-side access, reducing unnecessary reaching and stretching.
• Three-position EZ Adjust control allows collapsed capacity settings to be changed without altering air pressure.
• Captive air system eliminates mechanical springs, motors and hydraulics while providing dampened platform movement.
• Rotator brake prevents the platform from turning when a stationary working position is required.
• Pressure relief valve helps prevent excessive pressure build-up within the pneumatic system.
• Full-coverage finger guard helps protect pinch-point areas beneath the rotating platform.
• Ball bearing centre pivot supports smooth and even rotation of the pallet platform.
• Durable powdercoated finish is applied over phosphatised surfaces for long-term industrial use.
• Fully assembled supply allows the unit to be put into service after the required air setup, while fork truck access assists relocation.

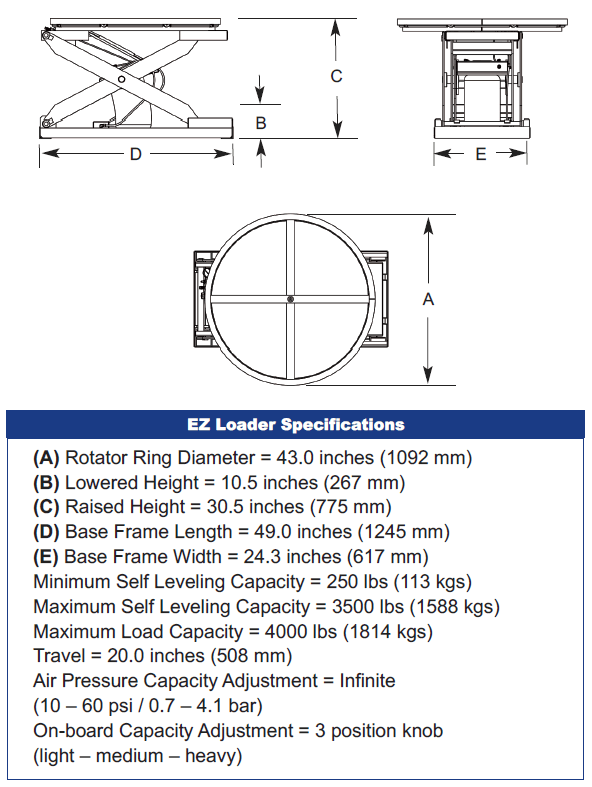

Specifications for the Bishamon EZ Loader Pneumatic Pallet Positioner:

The Bishamon EZ Loader is suited to manufacturing, warehousing, palletising, order picking and production environments where pallet loads need to be raised, lowered and rotated. It can also be used as a pneumatic pallet positioner, pallet leveller or rotating work positioner.
