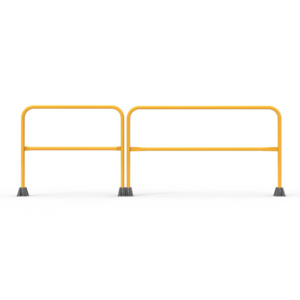

Removable Double Safety Rail System is a modular yellow steel handrail system for guiding pedestrians, zoning work areas and creating removable safety barriers in industrial spaces.
| Specification | Details |
|---|---|
| Description: | Modular hand rail system |
| Operation: | Rails plug into floor-mounted sockets |
| Rail Construction: | Steel rails |
| Rail Finish: | Yellow powder-coated finish |
| Tube Diameter: | 42mm |
| Hand Rail Height: | 1050mm |
| Knee Rail Height: | 530mm |
| Floor Sockets: | Cast steel |
| Compliance: | Handrail and knee rail spacings designed to meet AS1657:2013 |
| Order Code | Description | Dimensions | Weight |
|---|---|---|---|

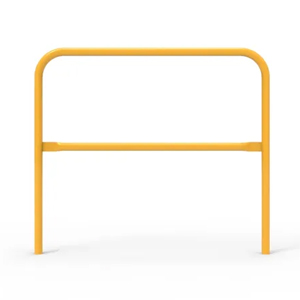

| SRD1220-Y: | Double safety rail | 1220 x 42mm | 12.7kg |

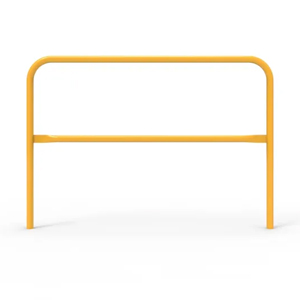

| SRD1525-Y: | Double safety rail | 1525 x 42mm | 15kg |

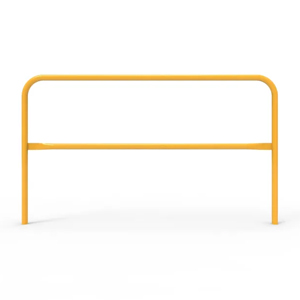

| SRD1830-Y: | Double safety rail | 1830 x 42mm | 17.2kg |

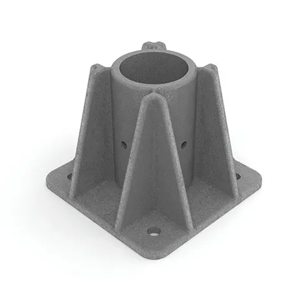

| SRCS-S: | Single cast shoe | 102 x 127 x 127mm | 3.1kg |

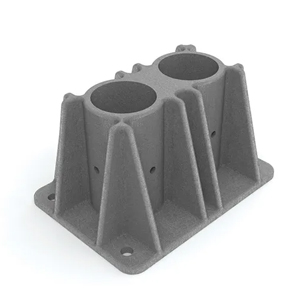

| SRCS-D: | Double cast shoe | 102 x 127 x 190mm | 5.4kg |
This removable safety rail, modular handrail and pedestrian barrier system is suited to warehouses, factories, loading areas, walkways and maintenance zones where controlled access and flexible traffic management are required.
