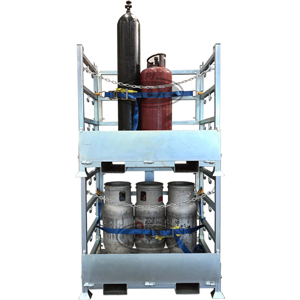

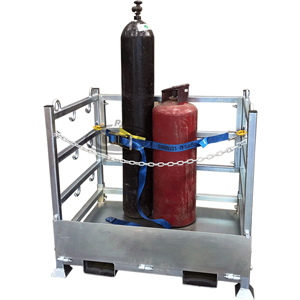

Gas Cylinder Cage suitable for all sizes and combinations with load binder to secure cylinders.
Benefits of Gas Cylinder Storage Cage
- Suitable for Storage and Transport.
- Fitted with 4 point Crane Lift lugs for overhead lifting
- Fork pockets for transportation by forklift.
- Fitted with 50mm load binder to secure cylinders of all sizes and combinations.

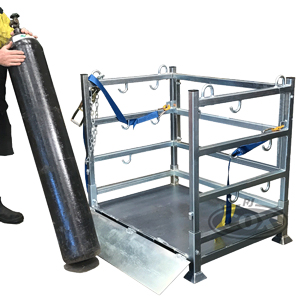

- Optioanl ramp - allowing cylinder to be moved easily in and out of the cage
GAS CYLINDER STORAGE CAGE SPECIFICATIONS:
- Safe Workling Load: 1000kg
- Unit Weight: 170kg / with ramp - 210kg
- Zinc Plate Finish
- Can Be supplied Flat Packed or Assembled
- Optional Ramp
- Horizontal C of G: 580mm / with ramp - 270mm
- Vertical C of G: 270mm / with ramp - 230mm
GB-SCF = Flatpacked
GB-SCA = Assembled -
GB-SC-RPF = Flatpacked with Optional Ramp
GB-SC-RPA = Assembled - Fully Welded with Optional Ramp
Gas Cylinder Storage Cage Drawing and Dimensions
Assembled with Optional Ramp
