FA Forklift Fork Arms & Tines

Price: AUD $440.00 (Ex GST AUD $400.00)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

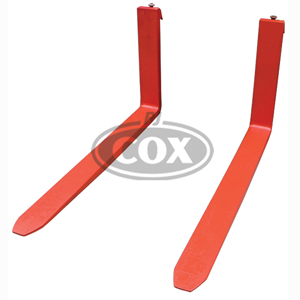

FA Forklift Fork Arms, also known as forklift tines, are manufactured from high-tensile steel and designed to comply with AS2359.1. Multiple lengths, capacities and mounting classes are available to suit different forklift applications.

Features of FA Forklift Fork Arms:

Standard ITA carriage hooks provide compatibility with suitable forklift carriage classes.
High-tensile steel construction provides a tough, lightweight and slow-wearing fork arm for a long service life.
Rotator Fork Arms (R) are manufactured to suit carriage rotators operating with a full load.
Random testing to AS2359.1 Clause 6.5 has been carried out on the fork arms.
Custom sizes are available for applications requiring non-standard fork arm dimensions; please contact the RJ Cox office for further information.

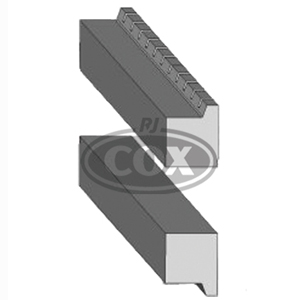

Forklift fork arms and carriage bars

Important: Always ensure the rating of the fork arm is equal to or greater than the rated lift capacity of the forklift truck. Fitting fork arms with a lower rating than the forklift truck could lead to failure, resulting in injury or death.

Specifications for FA Forklift Fork Arms:

Order Code	WLL/Pair @ 500mm Load Centre	Dimensions	Mounting Class	Weight/Pair
FA15-107	1500kg / 1.5 Tonne	100 x 35 x 1070mm	Class 2 – 407mm	82kg
FA25-107	2500kg / 2.5 Tonne	120 x 40 x 1070mm	Class 2 – 407mm	112kg
FA25-120	2500kg / 2.5 Tonne	120 x 40 x 1200mm	Class 2 – 407mm	123kg
FA25-120R *	2500kg / 2.5 Tonne	120 x 40 x 1200mm	Class 2 – 407mm	123kg
FA35-107	3500kg / 3.5 Tonne	125 x 50 x 1070mm	Class 3 – 508mm	146kg
FA35-120	3500kg / 3.5 Tonne	125 x 50 x 1200mm	Class 3 – 508mm	166kg
FA35-120R *	3500kg / 3.5 Tonne	125 x 50 x 1200mm	Class 3 – 508mm	166kg
FA45-107	4500kg / 4.5 Tonne	125 x 50 x 1070mm	Class 3 – 508mm	179kg
FA45-120	4500kg / 4.5 Tonne	125 x 50 x 1200mm	Class 3 – 508mm	194kg
FA45-120R *	4500kg / 4.5 Tonne	125 x 50 x 1200mm	Class 3 – 508mm	166kg
FA60-120	6000kg / 6 Tonne	150 x 60 x 1200mm	Class 4 – 635mm	260kg
FA60-120R *	6000kg / 6 Tonne	150 x 60 x 1200mm	Class 4 – 635mm	260kg

* Rotator Fork Arms (R) are manufactured to suit carriage rotators with a full load. When ordering fork arms, ensure the correct parts, capacity, dimensions and mounting class are selected from the table above.

These forklift fork arms and replacement forklift tines are suited to warehouses, manufacturing facilities, logistics operations and materials handling applications requiring standard ITA-mounted forks or full-load rotator fork arms in a range of capacities and lengths.
