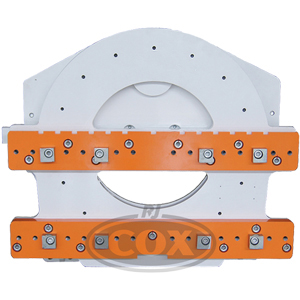

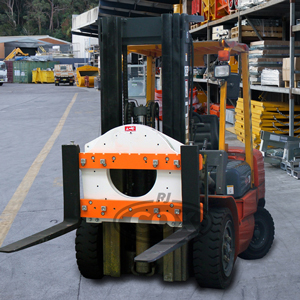

XZQ 360-degree Rotator Forklift Attachment
XZQ 360-degree Rotator Forklift Attachment

XZQ 360° Rotator Forklift Attachment hydraulically rotates loads through 360° in either direction for tipping, emptying and pouring applications, with models ranging from 2500kg / 2.5 Tonne to 6000kg / 6 Tonne capacity.

Features of XZQ 360° Rotator Forklift Attachment:

  • 360° bidirectional rotation allows loads and containers to be turned for controlled emptying, pouring and tipping applications.
  • Concealed drive motor provides additional protection for the rotating mechanism during demanding industrial use.
  • Excellent operator visibility supports safer and more accurate load positioning during forklift operation.
  • Standard forklift functionality is retained while adding hydraulic load rotation capability.
  • Broad industrial suitability makes the attachment suitable for food, chemical, sanitation, recycling, smelting and casting applications.
  • Wheelie bin emptying compatibility includes use with the W660PRB 660 Litre Wheelie Bin with Rotator Base.

Specifications for XZQ 360° Rotator Forklift Attachment:

SpecificationDetails
Rotation: 360° in both directions
Capacity Range: 2500kg / 2.5 Tonne to 6000kg / 6 Tonne
Mounting Classes: Class II to Class IV
Hydraulic Requirement: 1 additional hydraulic circuit required
Fork Tines and Hoses: Not included
Pricing: Price on application

XZQ Rotator Forklift Attachment Models:

SpecificationXZQ25-B002XZQ35-C001XZQ45-C001XZQ60-D001
Capacity @ Load Centre: 2500kg / 2.5 Tonne @ 500mm 3500kg / 3.5 Tonne @ 500mm 4500kg / 4.5 Tonne @ 600mm 6000kg / 6 Tonne @ 500mm
Mounting Class: II III III IV
Carriage Width: 1115mm 1100mm 1200mm 1200mm
Min Truck Carriage Width: 800mm 800mm 1016mm 1016mm
Max Fork Spacing: 1030mm 1030mm 1130mm 1021mm
Lost Load: 160kg 226kg 192kg 235kg
Unit Weight: 311kg 389kg 550kg 577kg

Please note: Fork tines and hoses are not included. Contact the forklift manufacturer to confirm the forklift's residual capacity when fitted with the attachment.

The XZQ forklift rotator is ideal for container tipping, bin emptying, load turning and pouring operations across recycling, food processing, chemical, sanitation, foundry and industrial handling applications.
